High-Accuracy Customized Screw Auger Feeder with Discharge Spout or Slide Gate for Industrial Applications

Brand Name:	WeSeW
Model Number:	SS-717
MOQ:	1 pc
Price:	Price Negotiation
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Feeding Mechanism:

Screw Auger

Key Selling Points:

High-Accuracy

Structure:

Roller Conveyor

Customization:

Available Customized Request

Feeding Method:

Screw Auger

Specification:

Customized

Outlet Type:

Discharge Spout Or Slide Gate

Applicable Industries:

Manufacturing Plant, Energy & Mining

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

High-Accuracy Screw Auger Feeder

Customized Spiral Conveyor

Discharge Spout or Slide Gate Auger Conveyor

Product Description

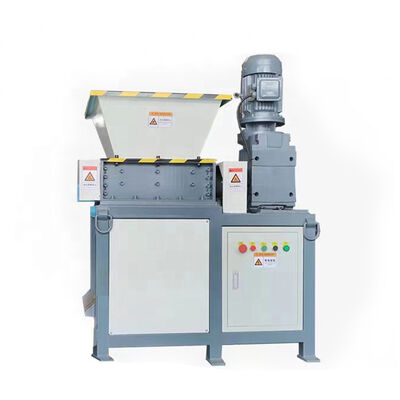

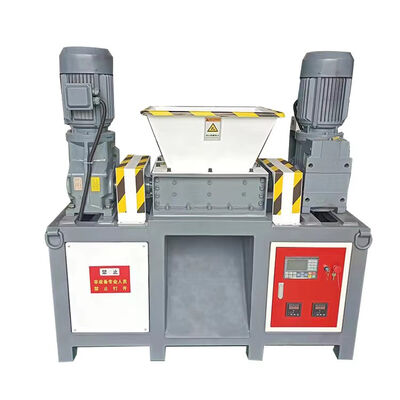

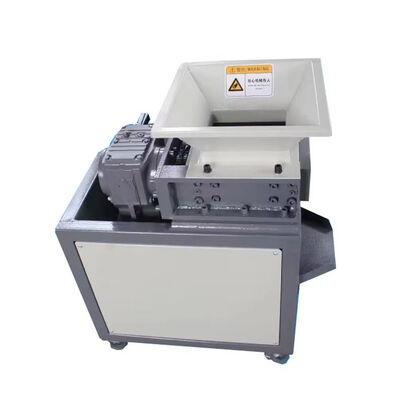

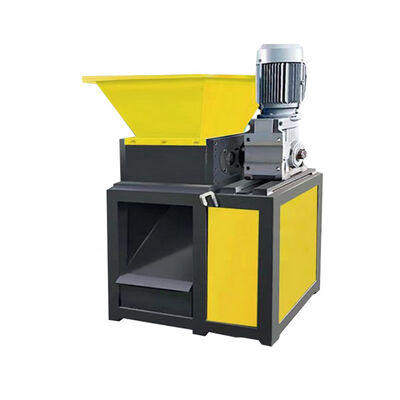

Heavy-Duty Double Shaft Shredder for Metal & Aluminum Cans Industrial Twin Shaft Crusher

This Heavy-Duty Double-Shaft Shredder delivers high torque and low noise for efficient solid waste reduction. Engineered with high-strength alloy blades and intelligent PLC control, it easily crushes scrap metal, aluminum cans, car parts, and electronic waste. Features a customized modular design, ideal for industrial recycling plants and automobile manufacturing.

Product Specifications

Name Cable Granulator Machine

Power 220 kW

Weight 240 kg

Brand Ouke

Application Scrap Cable Recycling

Function Recycle Copper Wires

Final Product Copper Granules

Product Overview

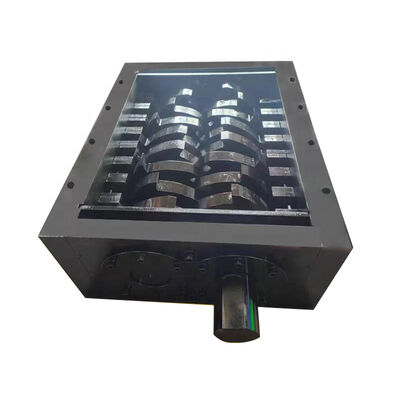

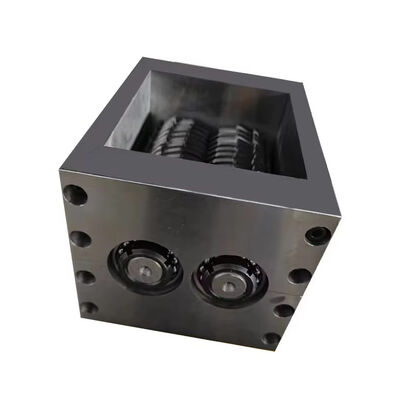

This New Condition Heavy-Duty Double-Shaft Shredder is engineered for high-performance size reduction of tough, bulky solid waste. Featuring high-torque, low-speed operation driven by an advanced PLC control system, it effortlessly crushes scrap metal, aluminum cans, car parts, and industrial waste. Built with premium bearing steel/alloy blades, this customized shredding chamber delivers exceptional wear resistance, low noise, and maximum throughput for modern automobile manufacturing plants and recycling facilities.

Key Product Features

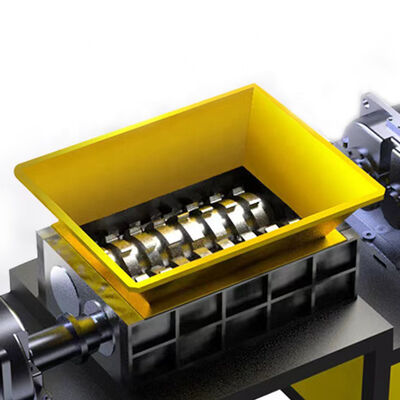

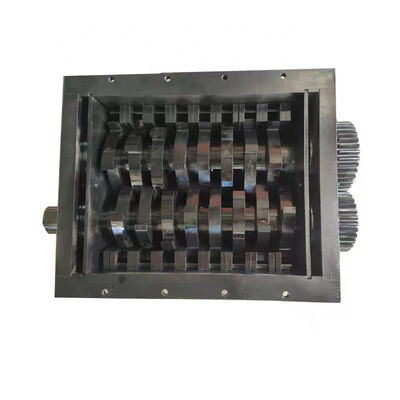

High-Torque Claws: Interlocking dual-shaft blades bite and pull materials in automatically without jamming.
Smart PLC Control: Equipped with Siemens/Omron PLC for automatic reverse rotation during overload to protect the shafts.
Premium Blade Material: Crafted from heavy-duty alloy/bearing steel (H13/Cr12MoV/D2) for extended operational lifespan.
Heavy-Duty Bearings: Multi-sealed bearing housing isolates dust and liquid, ensuring continuous stable operation.

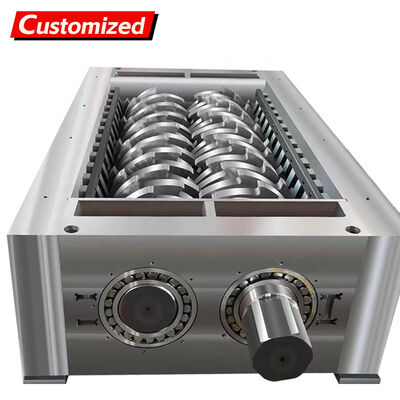

Customized Engineering: Tailored chamber dimensions, blade thickness, and claw quantities to match your specific output size requirements.

Technical Specifications

Note: The parameters below represent standard heavy-duty configurations and can be customized based on your specific application.

Parameter / Model	DS-600 Heavy-Duty	DS-800 Heavy-Duty	DS-1000 Heavy-Duty
Shredding Chamber Size (mm)	600 × 500	800 × 650	1000 × 800
Motor Power (kW)	11 kW × 2	22 kW × 2	45 kW × 2
Blade Diameter (mm)	Φ 300	Φ 350	Φ 400
Blade Thickness (mm)	20 / 30 / 40	30 / 40 / 50	40 / 50 / 60
Number of Blades (pcs)	20 - 30	26 - 40	32 - 50
Main Shaft Speed (rpm)	15 ~ 25	12 ~ 20	10 ~ 18
Throughput Capacity (t/h)	1.5 ~ 3.0 t/h	3.0 ~ 6.0 t/h	6.0 ~ 12.0 t/h
Control System	PLC Auto-Reverse	PLC Auto-Reverse	PLC Auto-Reverse

Application Fields

Our industrial twin-shaft crushers are widely deployed across various heavy industries to achieve efficient waste volume reduction and resource recovery:

Scrap Metal & Can Recycling: Shreds aluminum beverage cans, tin cans, steel drums, paint buckets, and light metal scraps.
Automobile Manufacturing & Dismantling Plants: Crushes car body shells, waste tires, plastic bumpers, aluminum engine blocks, and scrap auto parts.
E-Waste & Appliance Recycling: Processes discarded home appliances (refrigerators, washing machines), computer housings, and printed circuit boards (PCBs).
Industrial Solid Waste Treatment: Breaks down tough plastic pallets, heavy-duty wooden crates, large diameter pipes, and rigid production scrap.
Municipal Bulky Waste Reduction: Used as a pre-shredder for mattresses, old furniture, and mixed domestic waste prior to landfilling or incineration.
