Stainless Steel High Efficiency Customized Screw Auger Conveyor for Bulk Material Transport

Name: Stainless Steel High Efficiency Customized Screw Auger Conveyor for Bulk Material Transport
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: conveyor 1
Price: 19.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	conveyor 1
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Conveyor 1

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Specification:

Customized

Structure:

Conveyor System

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Stainless Steel Screw Auger Conveyor

High Efficiency Spiral Conveyor

Customized Auger Conveyor

Product Description

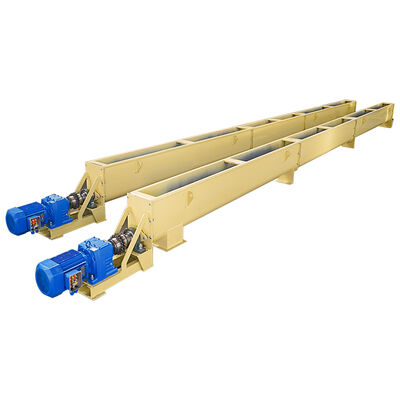

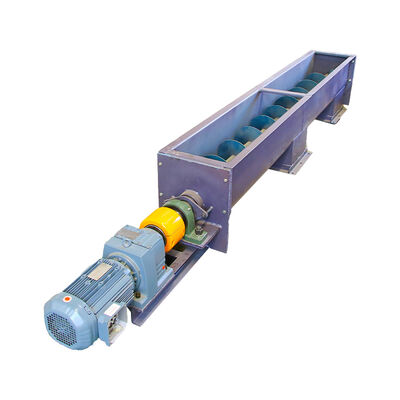

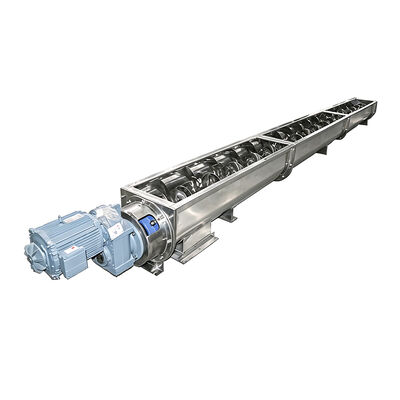

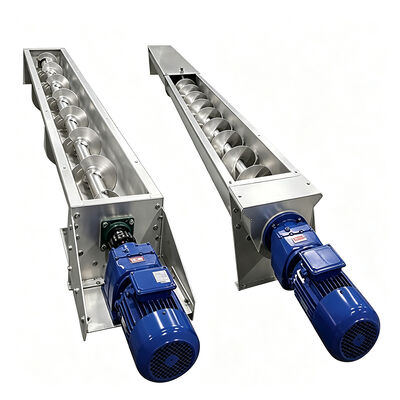

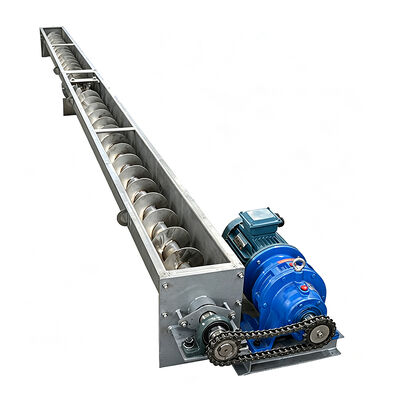

U Type Stainless Steel Screw Auger Conveyor for Grain, Cement, Powder & Bulk Material Transport

Product Specifications

Material	Carbon Steel/Stainless Steel
Material Feature	Sturdy and Durable
Certification	ISO9001:2008, CE
Handling Capacity	3-450 M/H
Conveying Angle	Max.75°
Rotating Speed	13-140 Rpm
Screw Blade Diameter	160/200/250/315/400/500/630/800/1000 mm
Screw Blade Pitch	160/200/250/315/355/400/450/500/600 mm
Conveying Material Type	Powdery Material/Granular Material
Fill Factor	0.33

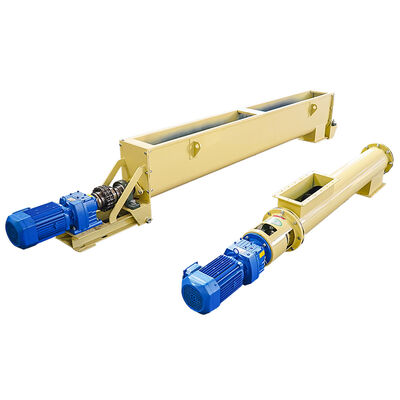

Structure Type	U Shape/Tube Shape
Drive Method	Gear Motor
Layout Form	Horizontal or Inclined
Transport Package	Steel Frame + Wooden Box

Screw Conveyor Overview

Screw Conveyors are economical and space-saving solutions for transferring powders or granular materials from a lower to a higher level. The bulk material withdrawn from a silo, hopper, conveying or feeding device may be discharged by screw conveyor into a weigh hopper, one or more bins or silos, or another conveying system.

When the screw shaft rotates, due to the gravitational force of the material and the friction force generated with the wall of the tank body, the material moves forward along the groove bottom of the conveyor under the pushing of the blade. The movement of material in the middle bearing is based on the thrust of the material moving forward, creating a slip movement mechanism.

Technical Specifications

Model	LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
n=140 rpm Q(m³/h)	2.2	8	14	24	34	64	100	145	208	300	388
n=112 rpm Q(m³/h)	1.7	7	12	20	26	52	80	116	165	230	320
n=90 rpm Q(m³/h)	1.4	6	10	16	21	41	64	94	130	180	260
n=71 rpm Q(m³/h)	1.1	4	7	13	16	34	52	80	110	150	200

Remark: n=rotate speed(rpm); Q=Capacity(m³/h); Filling factor=0.33

Key Features

Whole sealing structure prevents material leakage and contamination during conveying
Simple structure with small cross-section size, using minimal material to reduce manufacturing costs
Material contact parts available in carbon steel or stainless steel based on material characteristics

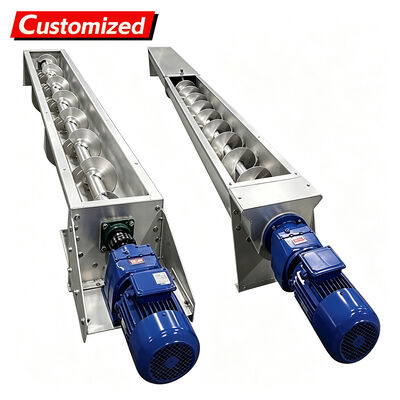

Customizable design with one or multiple inlets and outlets according to working conditions
Continuous spiral blades processed with cold rolled surface hardening treatment for uniform and stable material conveying
Head and tail spiral blades feature sparse and close screw pitch design to effectively prevent material plugging

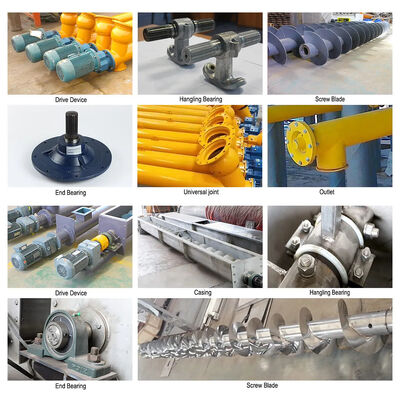

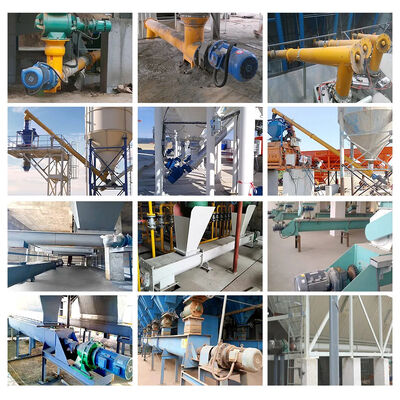

Product Images

Note: Above data is for reference only. Please contact us for more details - we will design according to your specific requirements.
