Heat Resistant Trough Screw Auger Conveyor with Multiple Inlets & Outlets and Customizable Length for Dry Bulk Material Handling

Heat Resistant Trough Screw Auger Conveyor with Multiple Inlets & Outlets and Customizable Length for Dry Bulk Material Handling

Brand Name:	WeSeW
Model Number:	conveyor 1
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Structure:

Conveyor System

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Heat Resistant Screw Auger Conveyor

Multiple Inlets & Outlets Trough Screw Conveyor

Customizable Length Spiral Conveyor

Product Description

Heat Resistant Trough Screw Auger Conveyor with Multiple Inlets & Outlets for Dry Bulk Material Handling

Trough Screw Conveyor is a continuous conveying equipment used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device. Single or combination of multiple screw equipment can be used to integrate with each other to meet particular on-site requirements. It has trough type tube with multiple inlets and outlets, which also has inclination angle of maximum 20°. The rotation of the blade initiated by the motor, then material transferred along the spiral to the outlets.

Key Features

Customizable Conveyor Length: Length can be customized according to specific needs
Customizable Screw Pitch: Pitch can be adjusted to meet different material requirements
Multiple Inlets and Outlets: Machine can be configured with multiple inlets and outlets based on working conditions
Sealed Structure: Whole sealing structure with cover ensures no pollution to the environment
Heat and Fire Resistant: Material features include oil, heat, and fire resistance for harsh environments

Technical Parameters - LS Type Screw Conveyor

Type	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Diameter (mm)	160	200	250	315	400	500	630	800	1000	1250
Screw Pitch (mm)	160	200	250	315	355	400	450	500	560	630
n=112, Q=8	8	14	24	34	64	100	145	208	388	388
n=90, Q=7	7	12	20	26	52	80	116	165	320	320
n=71, Q=6	6	10	16	21	41	64	94	130	260	260
n=50, Q=4	4	7	13	16	34	52	80	110	150	200

n - Rotation Speed (r/min), Allowable Deviation < 10%
Q - Capacity (m³/h)
Filling Factor = 0.33
Note: All parameters are for reference only, we can design and manufacture as per your requirements.

Additional Advantages

With cover, whole sealing structure, without pollution to the environment
Conveyor length can be customized according to your need
Simple structure, use little material to manufacture, save cost for you
Conveyor angle can be 0-30 degree. Save space on the site
Screw pitch can be customized according to require of different material
According to real working conditions, trough screw conveyor machine can be multiple inlets and outlets
Adopts hanging bearing to connect screw blades which is longer than 3-4m
Adopts the method of spot welding to weld spiral blade on the screw shaft

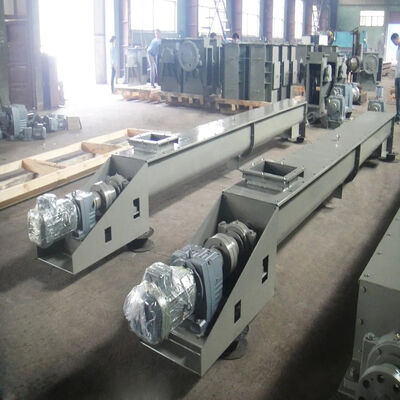

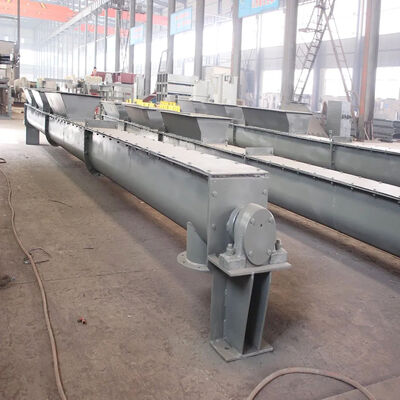

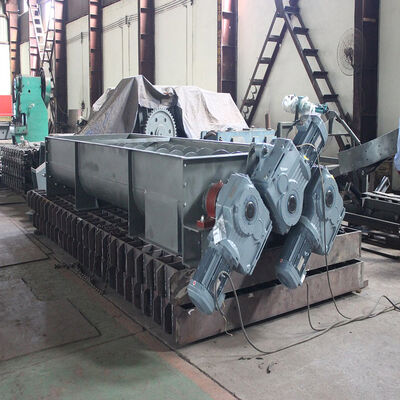

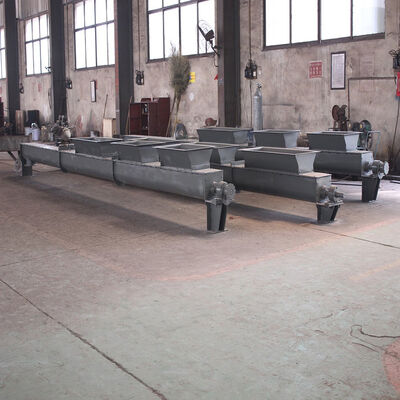

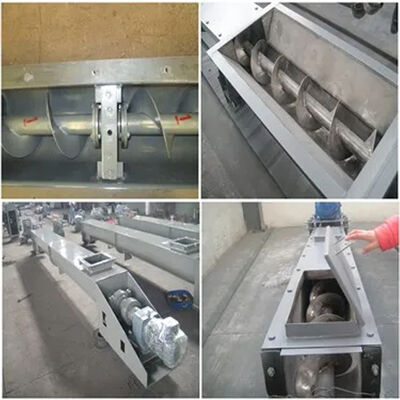

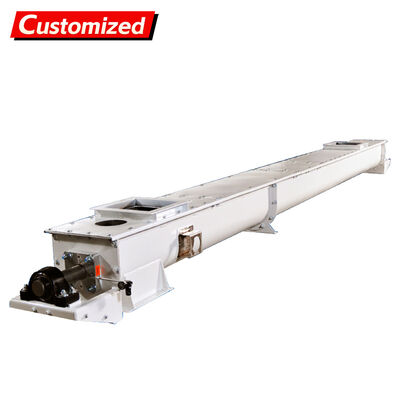

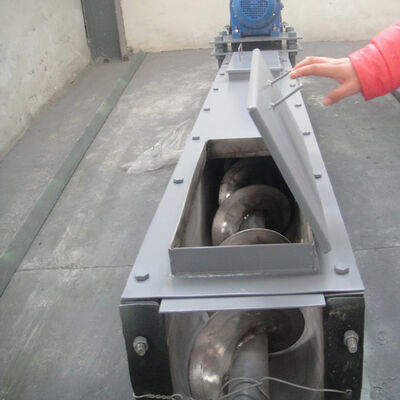

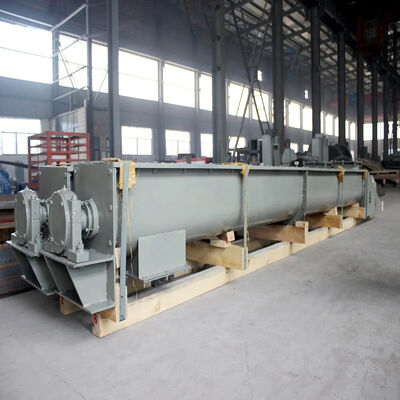

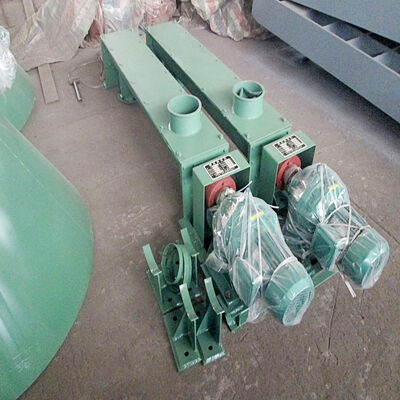

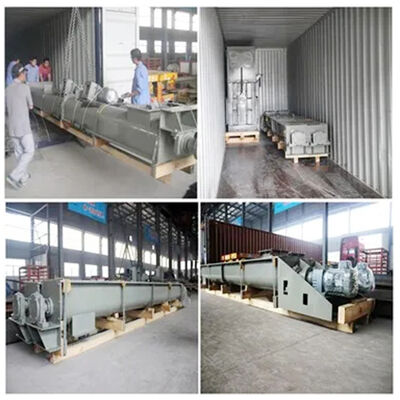

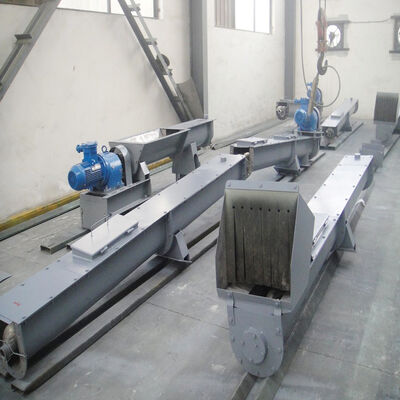

Product Images

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Australia Feb 1.2026

Helpful (2)

Excellent. Thank you—it was a pleasure working with you.

D*d

Greece Nov 10.2025

Helpful (1)

Sealed design prevents dust ingress. 304 stainless steel ensures durability and corrosion resistance. Customizable for seamless production line integration. Rapid after-sales response. Long-term reliability with cost savings. An excellent value choice.
