Heat Resistant High Efficiency Screw Auger Conveyor with Customized Design for Bulk Material Handling

Heat Resistant High Efficiency Screw Auger Conveyor with Customized Design for Bulk Material Handling

Brand Name:	WeSeW
Model Number:	conveyor 1
MOQ:	1 pc
Price:	US$8,000~US$30,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Structure:

Conveyor System

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Heat Resistant Screw Auger Conveyor

High Efficiency Spiral Conveyor

Customized Auger Conveyor

Product Description

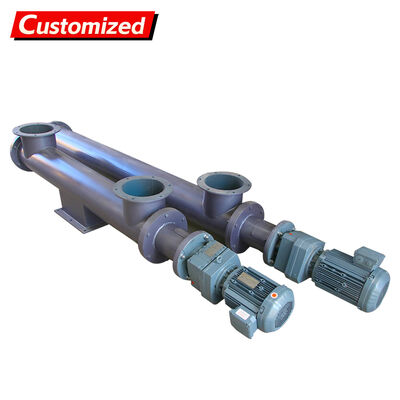

Silo Tube Shaft Screw Auger Conveyor | Carbon & Stainless Steel Powder Bulk Material Conveying

Professional silo tube shaft screw auger conveyor manufacturer. Fully sealed design, anti-blocking spiral blades, customizable inlets & outlets. Suitable for powder and granular bulk materials, carbon steel or stainless steel contact parts available.

Product Specifications

Material	Carbon Steel/Stainless Steel
Material Feature	Sturdy and Durable
Certification	ISO9001:2008, CE
Energy Saving	Energy Saving
After-sales Service	Online Support, Field Service
Handling Capacity	3-450 M/H
Conveying Angle	Max.75°
Rotating Speed	13-140 Rpm
Screw Blade Diameter	160/200/250/315/400/500/630/800/1000 mm
Screw Blade Pitch	160/200/250/315/355/400/450/500/600 mm
Conveying Material Type	Powdery Material/Granular Material
Fill Factor	0.33
Structure Type	U Shape/Tube Shape
Drive Method	Gear Motor
Layout Form	Horizontal or Inclined
Transport Package	Steel Frame + Wooden Box
Specification	LS160/200/250/315/400/500/630/800/1000

Product Overview

Screw Conveyors are economical and space saving solution for transferring powders or granular materials from a lower to a higher level. The bulk material withdrawn from a silo, hopper, conveying or feeding device may be discharged by screw conveyor into a weigh hopper, one or more bins or silos, another conveying system.

When the screw shaft rotates, due to the gravitational force of the material and the friction force generated with the wall of the tank body, the material can only move forward along the groove bottom of the conveyor under the pushing of the blade. It is like a non rotate nut along the rotating screw to do the offset movement. The movement of material in the middle bearing is based on the thrust of the material moving forward. Therefore, the transport of material in the conveyor is completely a kind of slip movement.

Technical Specifications

Model	LS100	LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Screw diameter(mm)	100	160	200	250	315	400	500	630	800	1000	1250
Screw pitch(mm)	100	160	200	250	315	355	400	450	500	560	630
n=140	Q=2.2	Q=8	Q=14	Q=24	Q=34	Q=64	Q=100	Q=145	Q=208	Q=300	Q=388
n=112	Q=1.7	Q=7	Q=12	Q=20	Q=26	Q=52	Q=80	Q=116	Q=165	Q=230	Q=320
n=90	Q=1.4	Q=6	Q=10	Q=16	Q=21	Q=41	Q=64	Q=94	Q=130	Q=180	Q=260
n=71	Q=1.1	Q=4	Q=7	Q=13	Q=16	Q=34	Q=52	Q=80	Q=110	Q=150	Q=200

Remark: n=rotate speed(rpm); Q=Capacity(m³/h); Filling factor=0.33

Key Features

Whole sealing structure, not only no material leakage, but also prevents the material is not polluted during conveying.
Simple structure, small cross-section size, use little material to manufacture, save cost for you.
According to the characteristics of different materials, contacting the material parts can optional carbon steel or stainless steel.
According to working conditions, screw conveyor can be designed to one or multiple inlets and outlets.
The continuous spiral blade is processed with cold rolled surface hardening treatment, which ensures the uniformity and stability of conveying material.
The head and tail spiral blades of the screw conveyor adopt sparse and close screw pitch, which can prevent material plugging effectively.

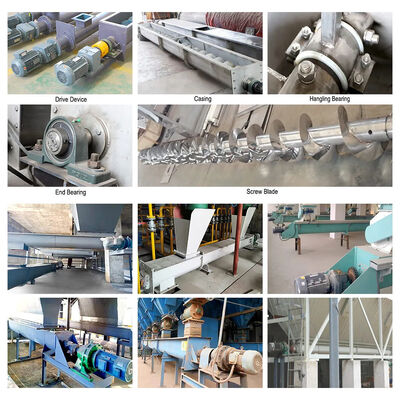

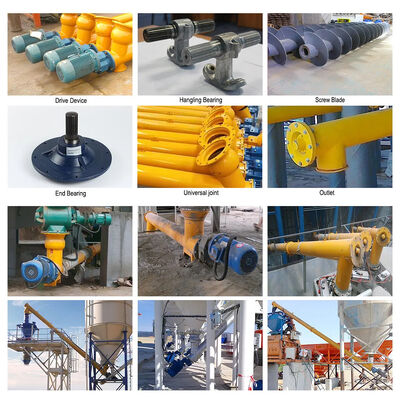

Product Gallery
