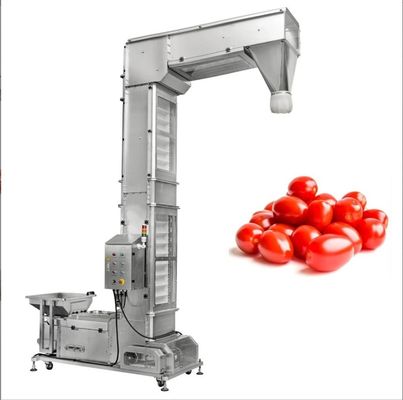

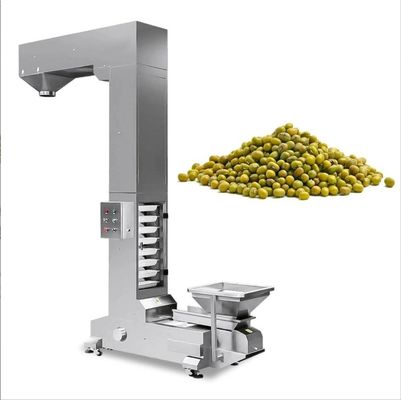

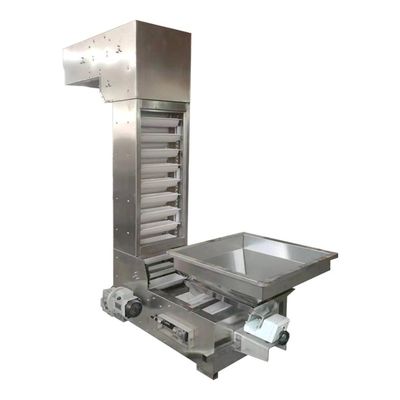

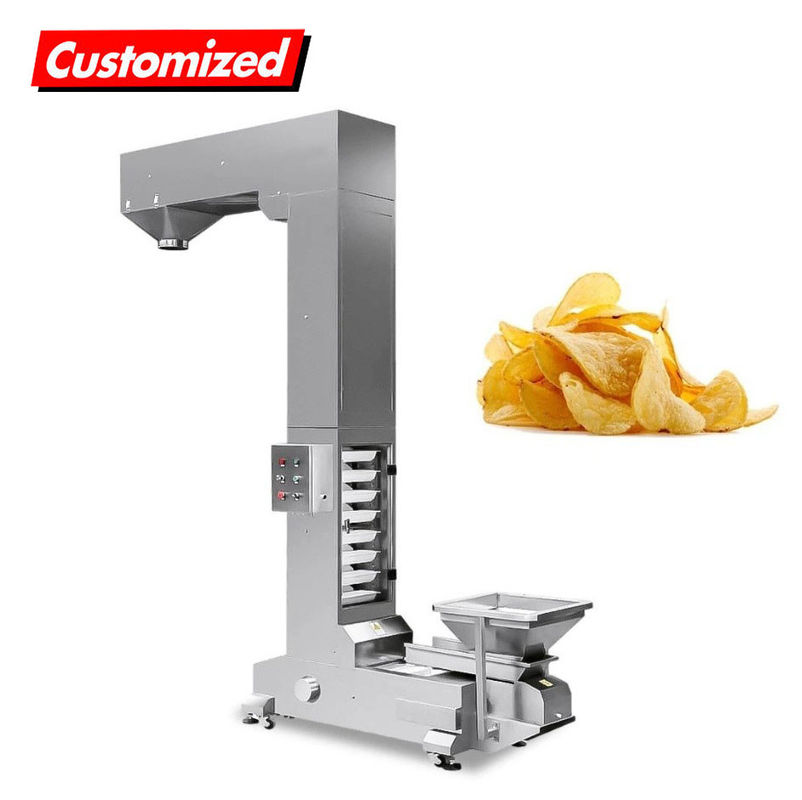

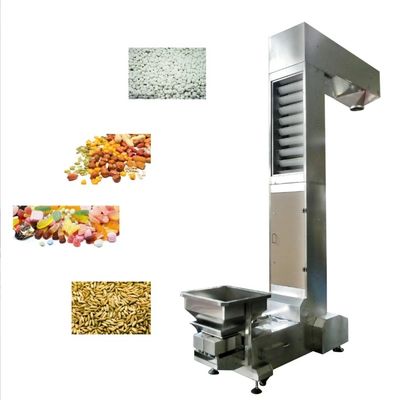

Customized Z Shape Bucket Elevator Conveyor With 304 Stainless Steel Material

Brand Name:	WeSeW
Model Number:	Kai003
MOQ:	1pcs
Price:	$30,000 1-4pcs; $15,000 5-9pcs; $8,000 10+pcs;
Payment Terms:	T/T,Western Union
Supply Ability:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,UL

Condition:

New

Machinery Test Report:

Provided

Dimension(L*W*H):

Customized

Specification:

Customized

Origin:

China

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Industry

Core Components:

Motor

Transport Package:

Wooden Box

Trademark:

WeSeW

Production Capacity:

500000/Year

Packaging Details:

Wooden Case

Supply Ability:

100 sets per month

Highlight:

Customized Bucket Elevator Conveyor

Z Shape Bucket Elevator Conveyor

Stainless Steel Z Bucket Conveyor

Product Description

Customized Z Shape Bucket Elevator Conveyor With 304 Stainless Steel Material

Product Overview

OEM custom stainless steel spiral auger conveyor designed for efficient material handling in various industrial applications.

Key Specifications

Model	SLS300-3500
Applicable Industries	Food & Beverage Factory, Construction works, Cement, etc.
Material	Stainless steel, Carbon steel
Structure	Conveyor System
Warranty	1 Year
Core Components	Motor, Bearing
Feeding Material	Powder or granule
Length	Customized 1~30m

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove with left-handed and right-handed configurations. When operating, the two screws rotate through a gear pair at the shaft extension, enabling axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. As the rotating shaft turns, the helical blade exerts normal thrust on the material. While radial components and blade friction could potentially cause material rotation around the axis, material gravity and trough friction prevent this rotation. Instead, the material moves axially along the trough under the blade's thrust component.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multi-functional capabilities including conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Specifically customized according to material, conveying volume and angle	198	carbon steel/stainless steel
2	SLS150	0.3-1.5	Specifically customized according to material, conveying volume and angle	294	carbon steel/stainless steel
3	SLS200	0.8-4.0	Specifically customized according to material, conveying volume and angle	388	carbon steel/stainless steel
4	SLS250	1.5-7.5	Specifically customized according to material, conveying volume and angle	486	carbon steel/stainless steel
5	SLS300	5.0-13.00	Specifically customized according to material, conveying volume and angle	576	carbon steel/stainless steel

Application Scope

Suitable for powdery, granular, and small block materials across various industries including chemical, environmental protection, and food processing.
