Z Type Inclined Belt Vertical Bucket Conveyor Stainless Steel For Quick Handling System

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$20,000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

AC0024-1

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Manufacturing Plant, Energy & Mining

Machinery Test Report:

Provided

Core Components:

Motor, Engine

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

500.00cm * 100.00cm * 80.00cm

Package Gross Weight:

150.000kg

After-sales Service:

Provided

Warranty:

1 Year

Structure:

Belt Conveyor

Samples:

US$ 3800/Set

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Supply Ability:

10,000 pieces per month

Highlight:

Inclined Belt Vertical Bucket Conveyor

Z Type Vertical Bucket Conveyor

Stainless Steel Z Elevator Conveyor

Product Description

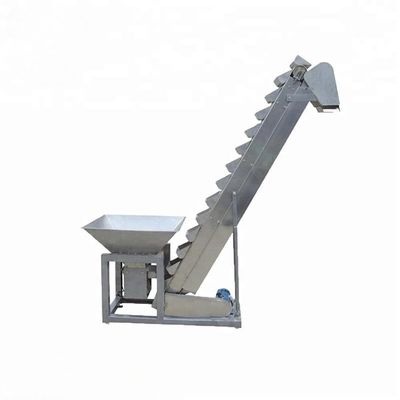

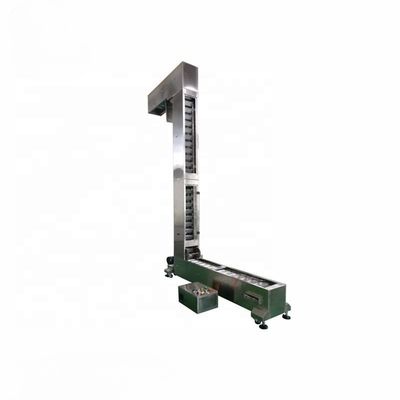

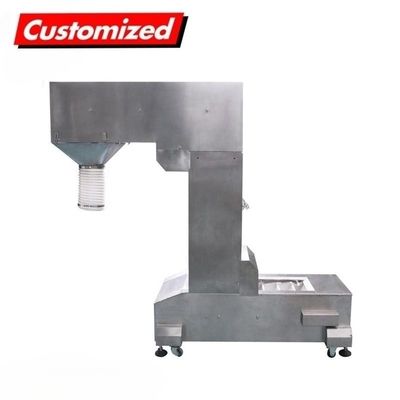

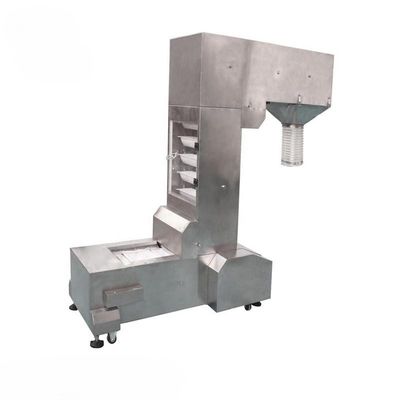

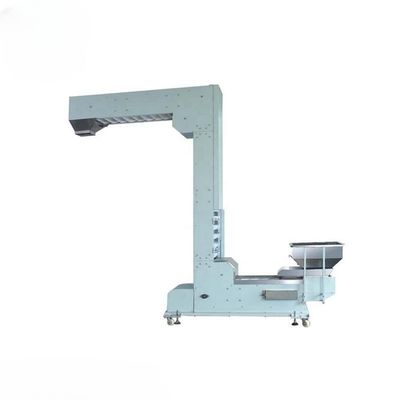

Z Type Inclined Belt Vertical Bucket Conveyor

Stainless steel conveyor system designed for quick handling and space-efficient vertical material transport.

Product Specifications

Applicable Industries	Hotels, Garment Shops, Building Material Shops, Machinery, and more
Structure	Belt conveyor
Machinery Test Report	Provided
Core Components	Motor, Gearbox
Condition	New
Material Feature	Heat Resistant
Dimensions (L×W×H)	Customizable sizing
Width or Diameter	Customizable sizing

Working Principle

Manual feeding of bulk products into vibrator feeder hopper
Bulk products are fed evenly into Z bucket elevator via vibration

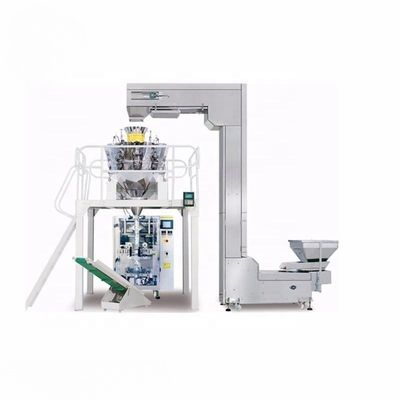

Z bucket elevator lifts products to the top of weighing machine for feeding

Key Features

Adjustable feeding speed via inverter control
Constructed from stainless steel 304 or carbon painted steel
Choice of complete automatic or manual operation
Includes vibrator feeder for orderly product distribution and blockage prevention
Auto vibration control system ensures even feeding and protects equipment
Comprehensive electric box with safety features and DELIXI inverter
Space-saving Z design with maximum conveying capacity of 12 m³/h
Vertical lifting with low power consumption and gentle product handling
Maximum lifting height of 10 meters
Customizable design based on customer requirements

Application Range

Ideal for vertical lifting of granules, slices, rolls, and irregularly shaped materials including cereal, pasta, candies, seeds, potato chips, coffee beans, nuts, puffy food, biscuits, chocolate, pet foods, frozen foods, plastic components, buttons, and small hardware.

Technical Drawing
