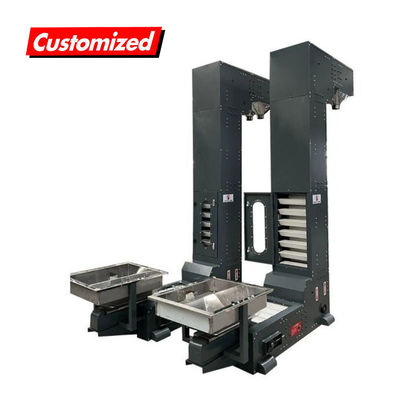

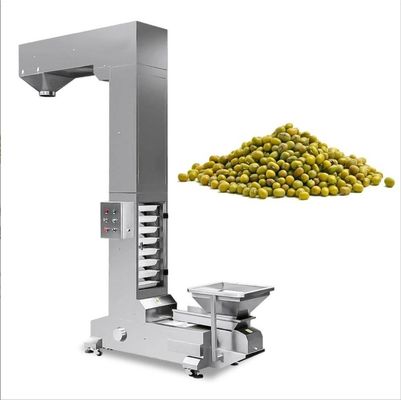

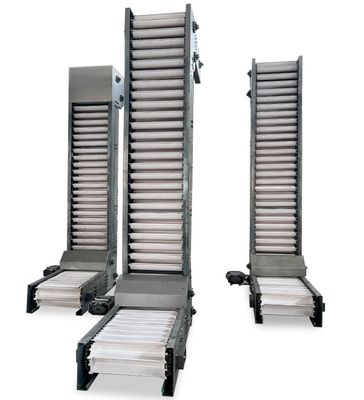

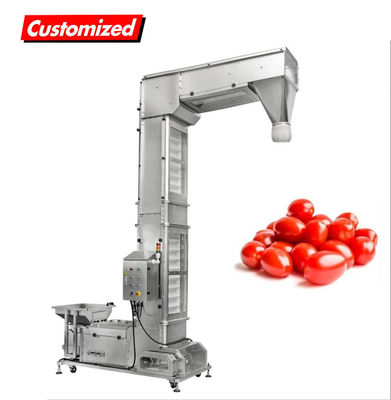

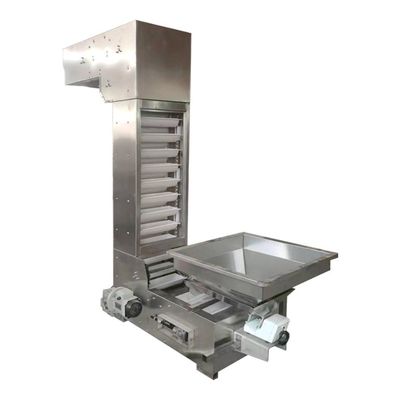

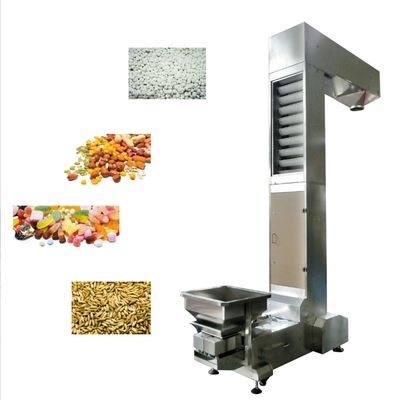

Chemical Industry Z Bucket Elevator Scraper Conveyor for All Kinds of Powder Granule

Name: Chemical Industry Z Bucket Elevator Scraper Conveyor for All Kinds of Powder Granule
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Kai001
Price: 35.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$20,000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

200.00cm * 100.00cm * 50.00cm

Package Gross Weight:

100.000kg

Warranty:

1 Year

Structure:

Conveyor System

Material:

Stainless Steel

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Chemical Industry Z Bucket Conveyor

Powder Granule Z Bucket Conveyor

Product Description

Stainless Steel Spiral Auger Conveyor

OEM custom stainless steel spiral auger conveyor designed for efficient material handling in various industrial applications.

Product Specifications

Model: SLS300-3500

Applicable Industries: Food & Beverage Factory, Construction Works, Cement, and more

Material: Stainless Steel, Carbon Steel

Structure: Conveyor System

Warranty: 1 Year

Core Components: Motor, Bearing

Feeding Material: Powder or Granule

Length: Customized 1~30m

Processing: Painting, Burnishing, Bead Blasting

Speed: Adjustable Speed

Material Feature: Heat Resistant

Type: Tube, Trough, Shaftless, Vertical

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove with left-handed and right-handed configurations. When operating, the two screws rotate through a gear pair at the shaft extension, enabling axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. As the rotating shaft turns, the helical blades generate normal thrust. While radial components and blade friction could potentially rotate the material, gravity and trough friction prevent rotation, resulting in controlled axial movement along the trough.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multiple physical functions: conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Specifically customized according to material, conveying volume and angle	198	Carbon Steel/Stainless Steel
2	SLS150	0.3-1.5	Specifically customized according to material, conveying volume and angle	294	Carbon Steel/Stainless Steel
3	SLS200	0.8-4.0	Specifically customized according to material, conveying volume and angle	388	Carbon Steel/Stainless Steel
4	SLS250	1.5-7.5	Specifically customized according to material, conveying volume and angle	486	Carbon Steel/Stainless Steel
5	SLS300	5.0-13.00	Specifically customized according to material, conveying volume and angle	576	Carbon Steel/Stainless Steel

Scope of Application

Ideal for handling powdery, granular, and small block materials across various industries including chemical, environmental protection, and food processing.
