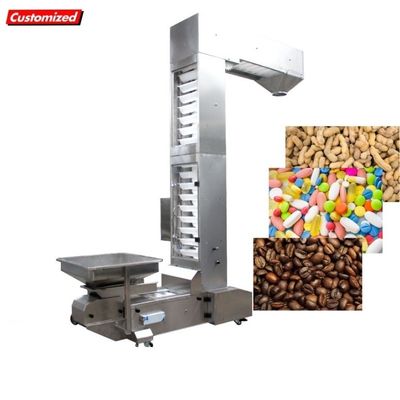

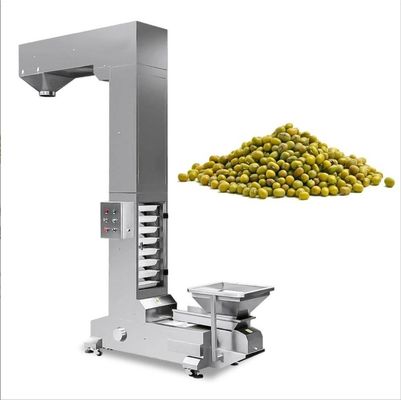

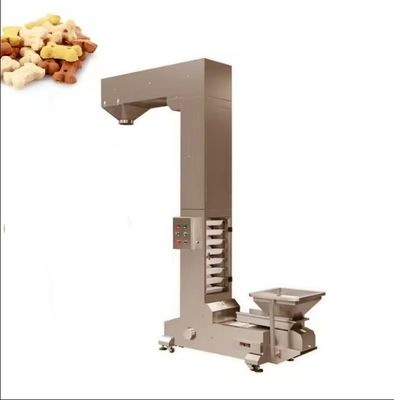

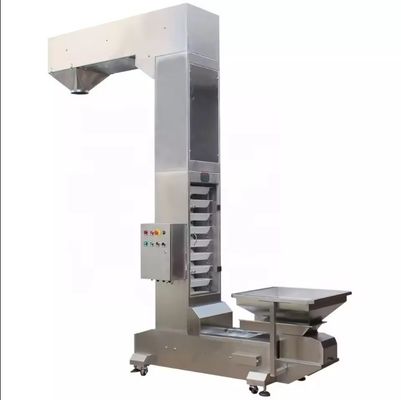

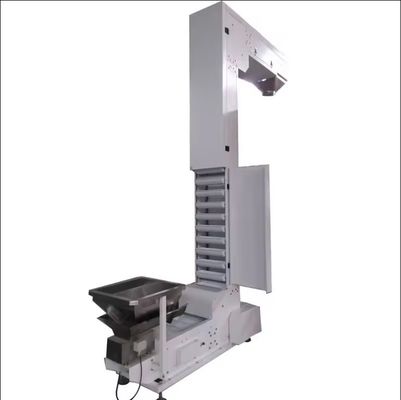

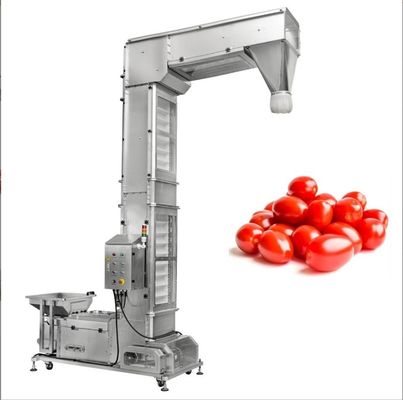

Customized Z Pattern Chain Scraper Conveyor for Food Grade Stainless 304 by Kai001

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$20,000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

200.00cm * 50.00cm * 50.00cm

Package Gross Weight:

80.000kg

Warranty:

1 Year

Structure:

Conveyor System

Material:

Stainless Steel

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Initial Payment Full Payment

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Customized Z Pattern Chain Scraper Conveyor

Z Pattern Chain Scraper Conveyor

Product Description

Customized Z Pattern Chain Scraper Conveyor for Food Grade Stainless 304

OEM custom stainless steel spiral auger conveyor designed for efficient material handling in industrial applications.

Product Specifications

Model	SLS300-3500
Applicable Industries	Food & Beverage Factory, Construction works, Cement
Material	Stainless steel, Carbon steel
Structure	Conveyor System
Warranty	1 Year
Core Components	Motor, Bearing
Feeding Material	Powder or granule
Length	Customized 1~30m
Processing	Painting, burnishing, Bead blasting
Speed	Adjustable Speed
Material Feature	Heat Resistant
Type	Tube, trough, shaftless, vertical

Product Introduction

The double-shaft screw conveyor is equipped with solid screws in a U-shaped groove, featuring one left-handed and one right-handed screw. When operating, the two screws rotate through a pair of gears at the shaft extension position. The rotation of the spiral body enables axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. When the rotating shaft turns, the material receives normal thrust from the helical blade. While the radial component of this thrust and blade friction could potentially rotate the material around the axis, material gravity and trough friction prevent rotation. Instead, the material moves axially along the trough under the blade's normal thrust component.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multiple physical functions including conveying, stirring, crushing, and pushing

Technical Parameters

Serial No.	Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
1	SLS100	0.1-0.5	Specifically customized according to material, conveying volume and angle	198	carbon steel/stainless steel
2	SLS150	0.3-1.5	Specifically customized according to material, conveying volume and angle	294	carbon steel/stainless steel
3	SLS200	0.8-4.0	Specifically customized according to material, conveying volume and angle	388	carbon steel/stainless steel
4	SLS250	1.5-7.5	Specifically customized according to material, conveying volume and angle	486	carbon steel/stainless steel
5	SLS300	5.0-13.00	Specifically customized according to material, conveying volume and angle	576	carbon steel/stainless steel

Scope of Application

Suitable for powdery, granular and small block materials in chemical industry, environmental protection, food and other industrial applications.
