Mining Transport Z Type Bucket Conveyor Customized With High Reliability

Name: Mining Transport Z Type Bucket Conveyor Customized With High Reliability
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Kai001
Price: 35.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$20,000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

200.00cm * 25.00cm * 20.00cm

Package Gross Weight:

70.000kg

Warranty:

1 Year

Structure:

Conveyor System

Material:

Stainless Steel

Samples:

US$ 1120/Set

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Mining Transport Z Type Bucket Conveyor

Customized Z Type Bucket Conveyor

High Reliability Z Elevator Conveyor

Product Description

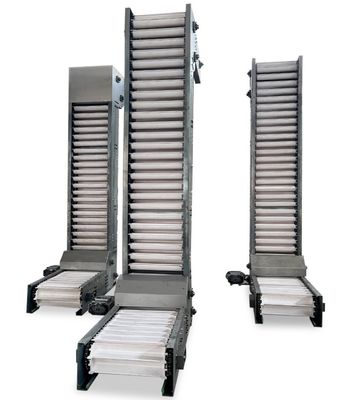

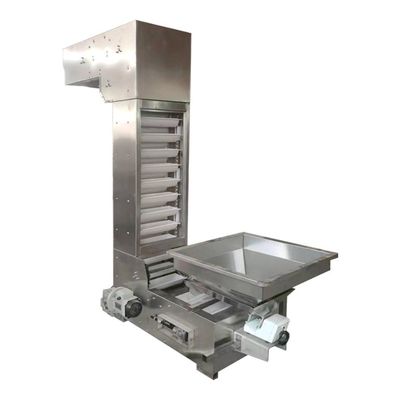

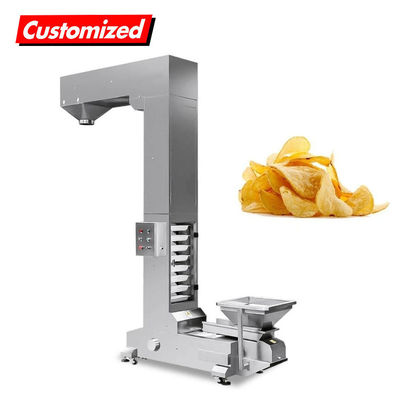

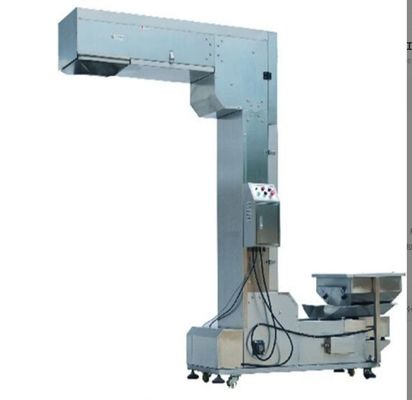

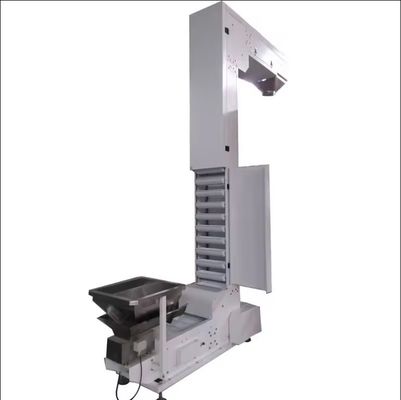

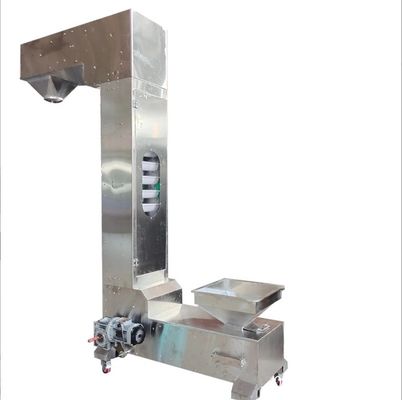

Mining Transport Z Type Bucket Conveyor

Customized stainless steel spiral auger conveyor with high reliability for industrial applications

Product Overview

OEM custom stainless steel spiral auger conveyor designed for reliable material handling in demanding industrial environments.

Key Specifications

Model	SLS300-3500
Applicable Industries	Food & Beverage Factory, Construction works, Cement
Material	Stainless steel, Carbon steel
Structure	Conveyor System
Warranty	1 Year
Core Components	Motor, Bearing
Feeding Material	Powder or granule
Length	Customized 1~30m
Type	Tube, trough, shaftless, vertical

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove with left-handed and right-handed configurations. When operating, the two screws rotate through a gear pair at the shaft extension, enabling axial material movement for efficient conveying.

Working Principle

Material enters through the feed port. As the rotating shaft turns, the helical blades generate normal thrust. While radial components and blade friction could induce material rotation, gravity and trough friction maintain axial movement along the trough, ensuring controlled material flow.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multi-functional capabilities including conveying, stirring, crushing, and pushing

Technical Parameters

Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
SLS100	0.1-0.5	Customized per material and volume	198	Carbon steel/Stainless steel
SLS150	0.3-1.5	Customized per material and volume	294	Carbon steel/Stainless steel
SLS200	0.8-4.0	Customized per material and volume	388	Carbon steel/Stainless steel
SLS250	1.5-7.5	Customized per material and volume	486	Carbon steel/Stainless steel
SLS300	5.0-13.00	Customized per material and volume	576	Carbon steel/Stainless steel

Application Scope

Suitable for powdery, granular, and small block materials across chemical, environmental protection, and food processing industries.
