Elevator Kaizhi-100 Jujube Nut Lifting Scraper Conveyor with Customized Power Options

Name: Elevator Kaizhi-100 Jujube Nut Lifting Scraper Conveyor with Customized Power Options
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: Kai001
Price: 35.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	Kai001
MOQ:	1 pc
Price:	US$20,000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

Kai001

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition:

New

Applicable Industries:

Industry

Machinery Test Report:

Provided

Core Components:

Motor

Dimension(L*W*H):

Customized

Transport Package:

Wooden Box

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

120.00cm * 50.00cm * 50.00cm

Package Gross Weight:

75.000kg

Warranty:

1 Year

Structure:

Conveyor System

Material:

Stainless Steel

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Jujube Nut Lifting Scraper Conveyor

Product Description

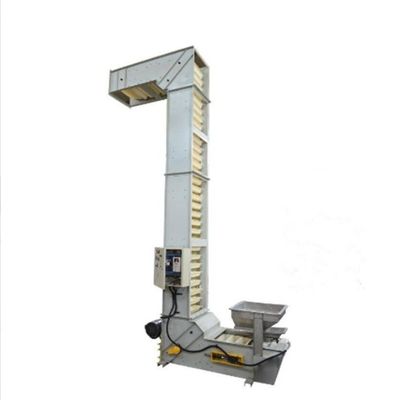

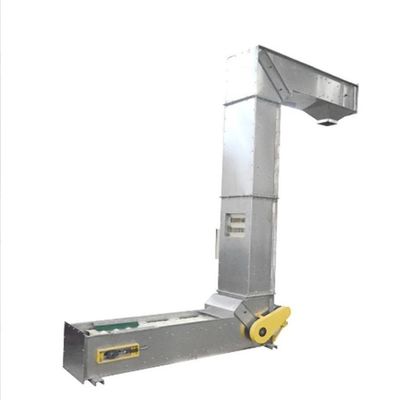

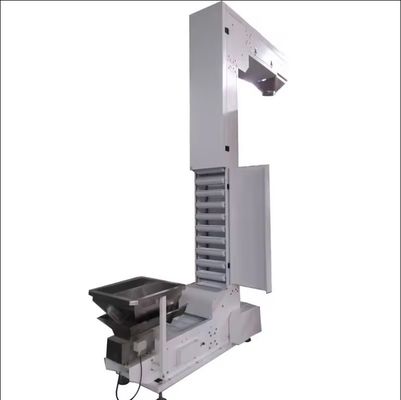

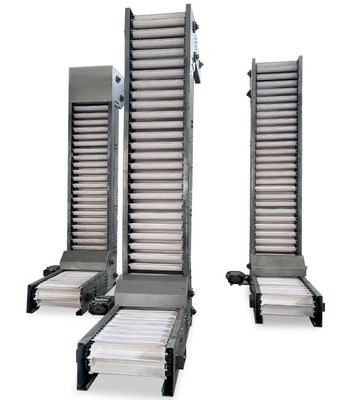

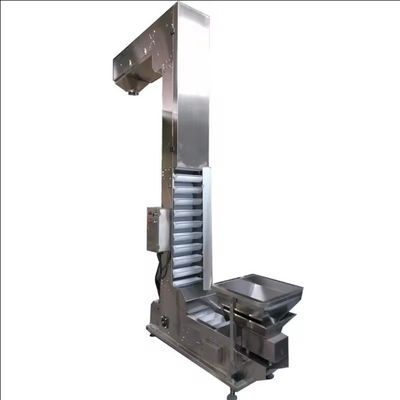

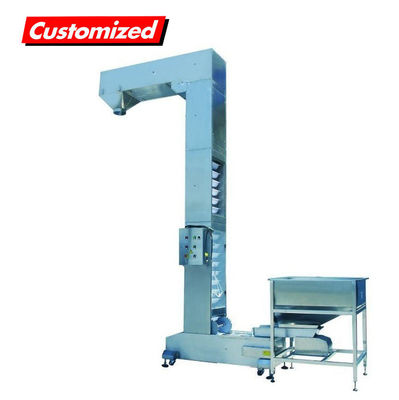

Elevator Kaizhi-100 Jujube Nut Lifting Scraper Conveyor

OEM custom stainless steel spiral auger conveyor with flexible power configurations for various industrial applications.

Model: SLS300-3500

Applicable Industries: Food & Beverage Factory, Construction Works, Cement, etc.

Material: Stainless steel, Carbon steel

Structure: Conveyor System

Warranty: 1 Year

Core Components: Motor, Bearing

Processing: Painting, burnishing, Bead blasting

Product Introduction

The double-shaft screw conveyor features a solid screw in a U-shaped groove configuration, with one left-handed and one right-handed screw. These screws rotate through a gear pair at the shaft extension, creating axial material movement for efficient conveying operations.

Working Principle

Material enters through the feed port. As the rotating shaft turns, the helical blades generate thrust that moves material axially along the trough. Material gravity and trough friction prevent rotation with the blades, ensuring controlled forward movement.

Key Features

Left-handed and right-handed combined conveying system
Large cross-sectional area for enhanced conveying capacity
Multi-functional capabilities including conveying, stirring, crushing, and pushing

Technical Parameters

Model	Conveyance Capacity (m³/h)	Power (kw)	Groove Inner Width (mm)	Material
SLS100	0.1-0.5	Customized per requirements	198	carbon steel/stainless steel
SLS150	0.3-1.5	Customized per requirements	294	carbon steel/stainless steel
SLS200	0.8-4.0	Customized per requirements	388	carbon steel/stainless steel
SLS250	1.5-7.5	Customized per requirements	486	carbon steel/stainless steel
SLS300	5.0-13.00	Customized per requirements	576	carbon steel/stainless steel

Application Scope

Suitable for powdery, granular, and small block materials across chemical, environmental protection, food, and related industries.
