Customized high Quality Single Screw and Barrel /injection Barrel Screw for Injection Molding Machine Machinery Parts From China

Name: Customized high Quality Single Screw and Barrel /injection Barrel Screw for Injection Molding Machine Machinery Parts From China
Brand: Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd
SKU: W003
Price: 100.00 USD
Availability: InStock

Brand Name:	WeSeW
Model Number:	W003
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Model NO.:

W003

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Single-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Exhaust:

Exhaust

Automation:

Automatic

Computerized:

Computerized

Product Name:

Single Screw And Barrel

Service:

OEM/ ODM

Surface Treatment:

Customized

Dimension(L*W*H):

Customized

Key Selling Points:

High-Accuracy

Transport Package:

Bag, Carton, Wooden Case, Customize

Specification:

Customized

Trademark:

WESEW

Origin:

China

Supply Ability:

500000/Year

Package Size:

100.00cm * 20.00cm * 20.00cm

Package Gross Weight:

50.000kg

After-sales Service:

Provide

Warranty:

12 Months

Type:

Pipe Extruder

Customization:

Available Customized Request

Shipping Cost:

About Shipping Cost And Estimated Delivery Time.

Currency:

US$

Return&refunds:

You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Screw Design:

Plastify Extruder Single Screw Barrel

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

customized injection molding screw barrel

single screw barrel for injection machine

high quality screw barrel set

Product Description

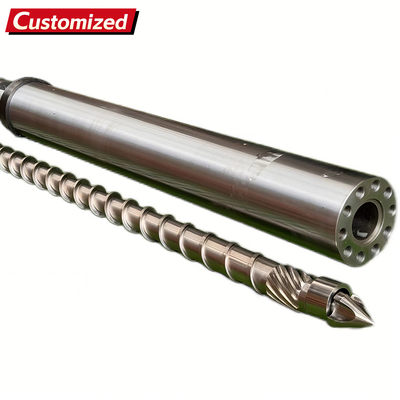

Customized High Quality Single Screw and Barrel for Injection Molding Machines

Precision-engineered injection barrel screws designed for optimal performance in injection molding machinery, manufactured to the highest quality standards.

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Important Notice: We only accept product customization. Please contact us before placing an order to discuss your specific requirements.

Product Overview

The screw is the core component of injection molding machines, directly determining product quality. Our plasticizing screws perform essential functions including conveying, melting, mixing, compressing, metering, and exhausting - all critical factors affecting plasticizing quality.

Screw Material Classification

HPT Fully Hardened Powder Alloy Screw

Manufactured from tungsten-cobalt powder alloy tool steel with specialized hardening processes. Features uniform internal and external hardness of approximately HRC65°. Ideal for transparent products, precision components, and high-temperature corrosive plastics including LCP, PES, PPA with fiber additives.

Double Alloy Screw

Utilizes SACM645 and 38CrMoAlA base materials with tungsten carbide nickel-based alloy ion spray welding on crests or grooves. Surface hardness around HRC60°. Suitable for transparent products and engineering materials like PA6 and PA66 with fiber reinforcement.

Electroplating Screw

Base materials of SACM645 and 38CrMoAlA with hard chromium, nickel, or titanium electroplating. Hardness approximately HRC60°. Recommended for PC, PMMA, PET transparent materials and corrosive U-PVC plastics.

Stainless Steel Screw

Constructed from 9Cr18MoV special stainless tool steel with complete quenching and hardening. Overall hardness around HRC55°.

SKD61 Screw

Manufactured from Hitachi SKD61 material using specialized processes for exceptional toughness and torsion resistance.

Ordinary Nitrided Screw

Base materials of SACM645 and 38CrMoAlA with specialized processing. Nitride depth 0.5-0.8mm with overall hardness HV980~1080°. Designed for standard plastics including PP, ABS, PS, AS, PVC.

Screw Segment Functions

Injection molding screws are typically divided into three segments with varying proportions, groove depths, and transition forms depending on application requirements.

Feeding Section

Fixed groove depth section responsible for preheating, conveying, and pushing plastic solids. Ensures plastic begins melting by the end of this segment.

Compression Section

Tapering groove depth section performing melting, mixing, shear compression, and pressurized exhaust functions. Complete plastic dissolution occurs here with volume reduction. Compression ratio design is critical for performance.

Homogenizing Section (Metering Section)

Fixed groove depth section providing mixing, melt transportation, and metering. Maintains consistent pressure for uniform melt temperature and stable plastic flow rates.

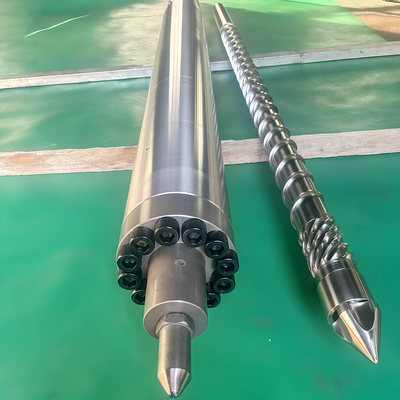

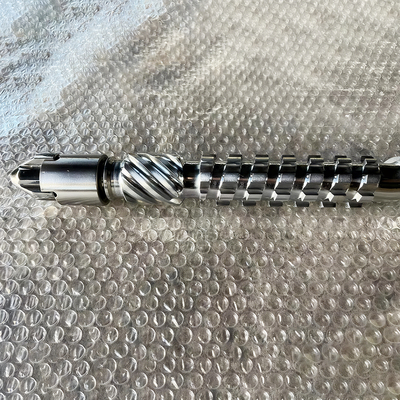

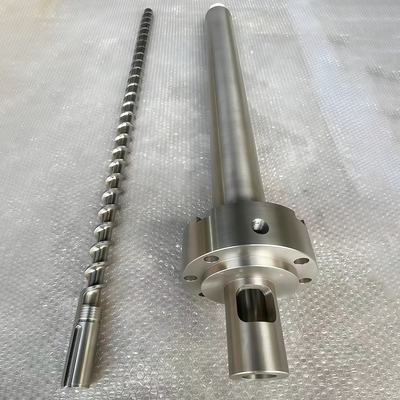

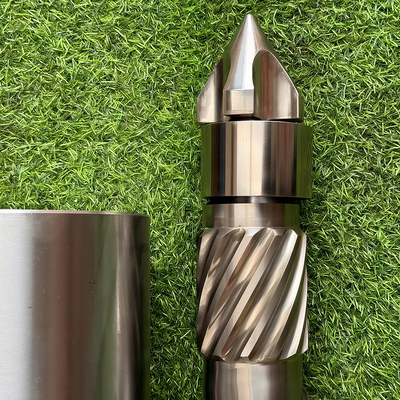

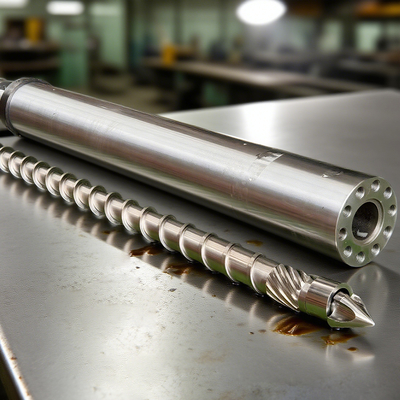

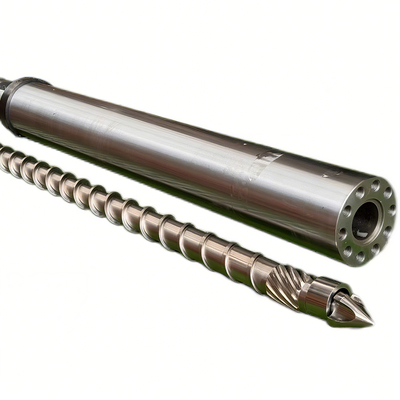

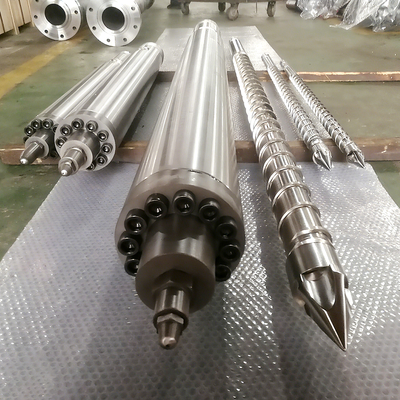

Product Gallery
