Customized Conical Twin Screw and Double Screw Screw Barrel Set for Electroplating Hard Chromium Layer Plastic Extruder

Brand Name:	WeSeW
Model Number:	W007
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Single-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Product Name:

Conical Twin Screw And Barrel Double Screw And Barrel For Plastic Extruder

Screw Design:

Plastify Extruder Single Screw Barrel

Threadpitch:

1.5mm

Screw Type:

Single Or Twin

Threadtype:

Metric

Usage:

Industrial Screw Production

Application:

Plastic Granulating Machine

Productname:

Screw Barrel Set

Structure:

Conveyor System

Quenching Hardness:

HRC 58-62

Length:

200mm

Warranty:

12 Months Manufacturer Warranty

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

customized conical twin screw barrel set

double screw barrel set for plastic extruder

electroplating hard chromium screw barrel set

Product Description

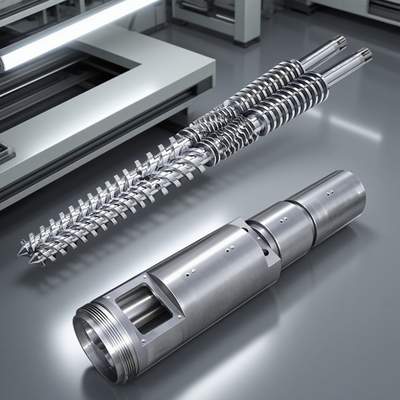

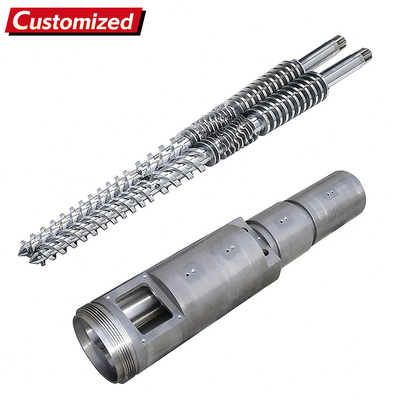

Customized Conical Twin Screw and Double Screw Barrel Set

Electroplating Hard Chromium Layer Plastic Extruder Components

Product Specifications

Application	Film blower, Cast film machine
Screw barrel material	38CrMOALA, SACM645, Sprayed dual alloy, etc.
Screw diameter	Φ30-Φ150
Aspect ratio	L/D=15-35
Overall hardness	HRC58°-68°
Nitriding depth	0.4mm-0.7mm
Straightness	0.015mm-1000mm
Scope of application	PE, PO, PP, PVC, TPU, PBT, PET, PLA, etc.
Technical indicators	Conditioning time 72H, Tempering hardness HB260-290, Gas vacuum nitriding time 168H, Nitride hardness HRC62-65°
Processing method	Vacuum nitriding, high frequency quenching, alloy spraying, electroplating hard chromium layer
Condition	New
Warranty	1 Year
Package	Wooden box

Important Notice: We only accept product customization. Please be sure to contact us before placing an order.

Product Overview

The screw is the main core component of the injection molding machine. The quality of the screw determines the quality of the final product.

The plasticizing screw of the injection molding machine has multiple functions including conveying, melting, mixing, compressing, metering and exhausting, making it a critical factor affecting plasticizing quality.

Screw Material Classification

HPT Fully Hardened Powder Alloy Screw: Made of tungsten-cobalt powder alloy tool steel with overall hardening. Suitable for transparent products, precision products, and high-temperature corrosive plastics like LCP, PES, PPA with fiber.
Double Alloy Screw: Base material SACM645 and 38CrMoAlA with tungsten carbide nickel-based alloy ion spray welding. Suitable for transparent products and engineering materials like PA6, PA66 with fiber.
Electroplating Screw: Base materials SACM645 and 38CrMoAlA with hard chromium, nickel, or titanium electroplating. Suitable for PC, PMMA, PET transparent materials and corrosive U-PVC plastics.
Stainless Steel Screw: 9Cr18MoV special stainless tool steel with overall quenching and hardening. Suitable for various applications requiring corrosion resistance.
SKD61 Screw: Hitachi SKD61 material with special processing for excellent toughness and torsion resistance.
Ordinary Nitrided Screw: Base materials SACM645 and 38CrMoAlA with nitride layer depth 0.5-0.8mm. Suitable for ordinary plastics like PP, ABS, PS, AS, PVC.

Screw Segment Functions

Feeding Section

Fixed screw groove depth responsible for preheating, conveying and pushing plastic solids. Ensures plastic begins melting at the end of this section.

Compression Section

Tapering screw groove depth for melting, mixing, shearing compression and pressurized exhaust. Plastic completely dissolves here with volume shrinkage. Compression ratio design is critical.

Homogenizing Section (Metering Section)

Fixed screw groove depth for mixing, melt transportation, and metering. Provides sufficient pressure to maintain uniform melt temperature and stable flow rate.

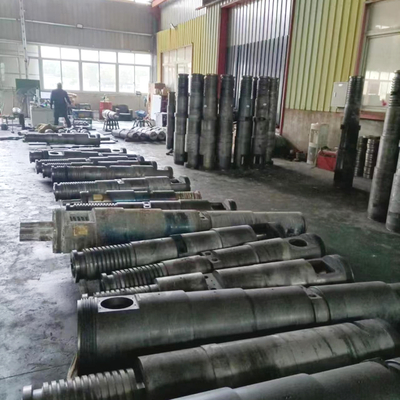

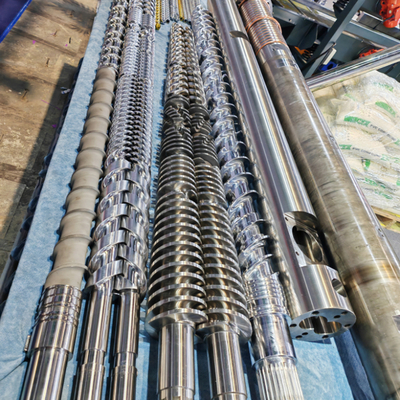

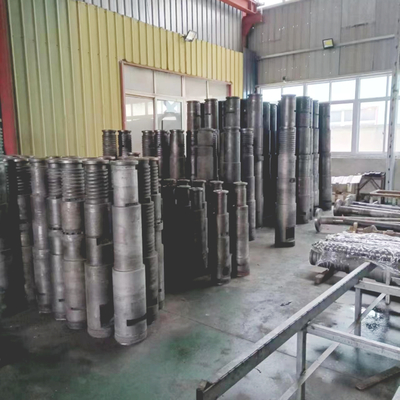

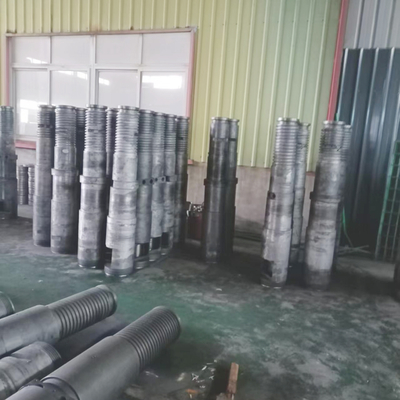

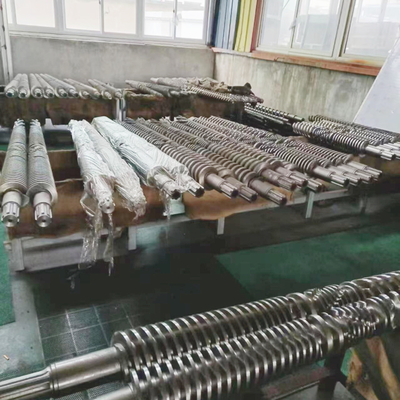

Product Display
