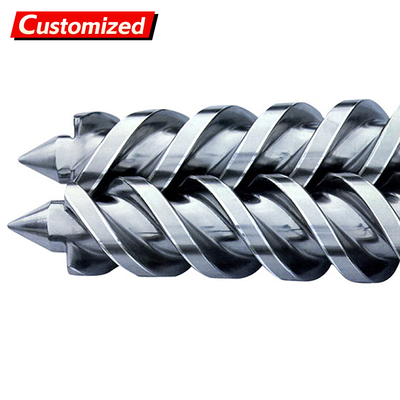

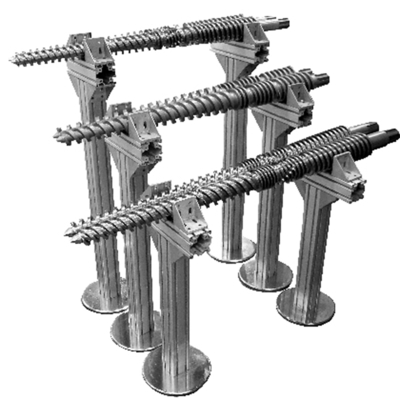

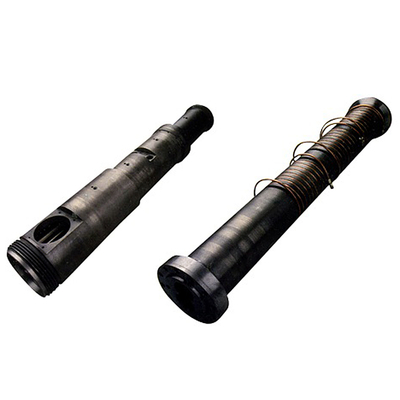

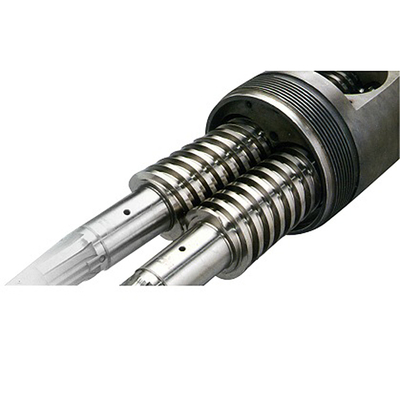

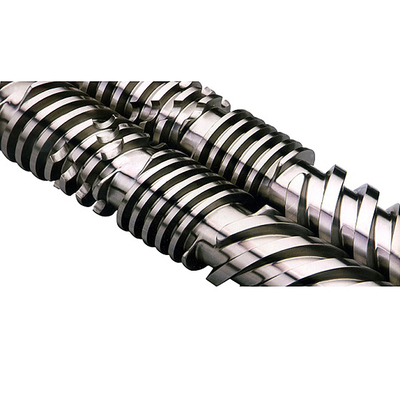

custom Co-Rotating Conical Twin Screw Barrel for Pvc Pipe Profile Wpc Conical Twin Bimetallic Screw Barrel

Brand Name:	WeSeW
Model Number:	W0010
MOQ:	1 pc
Price:	US$200~US$1,000 per pc
Payment Terms:	T/T, Western Union
Supply Ability:	1000000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Plastic Processed:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, Etc.

Product Type:

Profile Extrusion Molding Machine

Feeding Mode:

Multiple Feed

Assembly Structure:

Integral Type Extruder

Screw:

Twin-Screw

Engagement System:

Full Intermeshing

Screw Channel Structure:

Deep Screw

Product Name:

Bimetal Twin Screw And Barrel For Injection Molding Machine

Packaging Details:

Wooden Case

Supply Ability:

1000000pcs per month

Highlight:

custom conical twin screw barrel

PVC pipe profile screw barrel

bimetallic twin screw barrel

Product Description

Co-Rotating Conical Twin Screw Barrel for Pvc Pipe Profile Wpc Conical Twin Bimetallic Screw Barrel

Product name	Conical Twin Bimetallic Screw Barrel
Material	38CrMoAlA SKD11 SKD61 Stainless
Packaging	Wood case
Place of origin	China
Used	Extruding plastic products
OEM/ODM	Customization Service Provided
material	38CrMoAlA SKD11 SKD61 Stainless
Screw Diameter	16-210mm L/D15-50

Product Description:

Although there are several reasons for using screws and barrels in plastic output-producing units, you must know its aspects in detail before using them. Below mentioned are a few significant benefits of utilizing it.

High-Maintenance Not Required
This product is low maintenance; hence you don’t need very high tools or sources to maintain its quality. That is why enterprises can effortlessly regulate it.

Highly Durable
It is also understood for its high stability as once you buy this, you don’t need to repair it regularly.

Outstanding Strength
Another plus point of this product has its stability. This product comes with outstanding stability, and you will feel it after using it.

Easily Availability
One more thing that goes into this product’s popularity is its availability, which is very effortlessly obtainable.

Injection molding machine screw material classification:
1. HPT fully hardened powder alloy screw
It is made of tungsten-cobalt powder alloy tool steel and is integrally hardened by a special process. The overall hardness of the inside and outside of the screw is the same, reaching about HRC65°. It is suitable for processing various transparent products, precision products, and special high-temperature and highly corrosive plastics such as LCP, PES, and PPA with fiber added.
2. Double alloy screw
Use SACM645 and 38CrMoAlA as the base material, and then ion spray weld the tungsten carbide nickel-based alloy on the crest or groove. The surface hardness of the screw is around HRC60°. It is suitable for processing various transparent products and engineering materials such as PA6 and PA66 with fiber added.
3. Electroplating screw
SACM645 and 38CrMoAlA are used as base materials. After forming, the outer surface is electroplated with a layer of hard chromium, nickel, titanium and other elements. The hardness is around HRC60°. Suitable for processing PC, PMMA, PET transparent materials and corrosive plastic U-PVC materials.
4. Stainless steel screw
The material is 9Cr18MoV special stainless tool steel, which adopts overall quenching + overall hardening treatment. The overall hardness is around HRC55°.
5. SKD61 screw
Made of Hitachi SKD61 material and processed with a special process, the product has good toughness and strong torsion resistance.
6. Ordinary nitrided screw
It is made of SACM645 and 38CrMoAlA as the base material and processed with a special process. The depth of the nitride layer is 0.5-0.8mm and the overall hardness is HV980~1080°. Suitable for processing ordinary plastics, such as PP, ABS, PS, AS, PVC and other ordinary plastics.

Injection molding machine screw segmentation description:
The screw of an injection molding machine can generally be divided into a feeding section, a compression section, and a homogenizing section (also called a metering section). (Note: Different screws have different proportions of the three sections, different screw groove depths, and different screw bottom diameter transition forms)
1. Injection molding machine screw feeding section
The depth of this section of the screw groove is fixed, and its function is responsible for preheating, conveying and pushing plastic solids. It must be ensured that the plastic begins to melt at the end of the feed section.
2. Injection molding machine screw compression section
This section is the groove depth of the tapering screw, and its functions are melting, mixing, shearing compression and pressurized exhaust of plastic raw materials. The plastic will completely dissolve in this section and the volume will shrink. The design of the compression ratio is very important.
3. Injection molding machine screw homogenization section
This section has a fixed groove depth for the screw groove. Its main functions are mixing, melt transportation, and metering. It must also provide sufficient pressure to maintain a uniform temperature of the melt and stabilize the flow rate of the molten plastic.

custom Co-Rotating Conical Twin Screw Barrel for Pvc Pipe Profile Wpc Conical Twin Bimetallic Screw Barrel 0
