Customized factory SUS304 Stainless Steel Vertical Z Type Bucket Elevator Lifting Hoisting Conveyor Manufacturer for Building Material Shops, Machinery Repair Shops, Manufacturing Plant

Brand Name:	WeSeW
Model Number:	W003
MOQ:	1 pc
Price:	US$2000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Core Components:

Motor

Dimension(L*W*H):

Customized

Specification:

Customized

Structure:

Conveyor System

Material:

Stainless Steel

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

SUS304 stainless steel bucket elevator

Z type vertical bucket conveyor

building material hoisting conveyor

Product Description

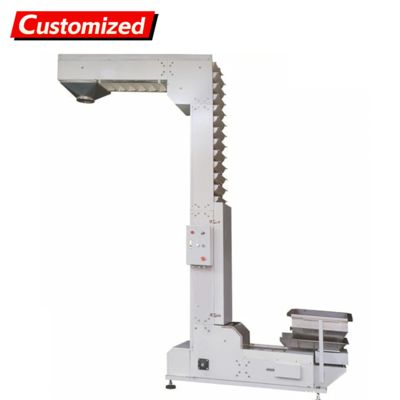

SUS304 Stainless Steel Vertical Z-Type Bucket Elevator

Custom engineered SUS304 stainless steel vertical Z-type bucket elevator designed for building material shops, machinery repair shops, and manufacturing plants. This high-efficiency lifting conveyor elevates materials from low to high positions with exceptional performance.

Product Overview

Bucket elevators are widely used conveyors that efficiently elevate materials vertically. Essential for industries including cement, coal, gypsum, limestone, dry clay, and others, these systems are also ideal for food and chemical industries handling bulk solids and granular materials. Known for stable operation and simple structure.

Technical Specifications

Specification	Details
Machine Frame	304 stainless steel or carbon steel
Bucket Material	Food grade ABS, PP plastic, or 304 stainless steel
Bucket Size	1.8L, 2L, 4L, or 6L
Speed Control	Delta inverter adjustable
Maximum Speed	90 buckets/minute
Working Capacity	3-12 M³/Hour
Lifting Height	1.5m standard or customized
Chains	304 stainless steel or carbon steel
Outlets	1, 2, 3 or custom configurations
Voltage	110V/220V single phase or 380V 3-phase, 50Hz/60Hz
Power	750W

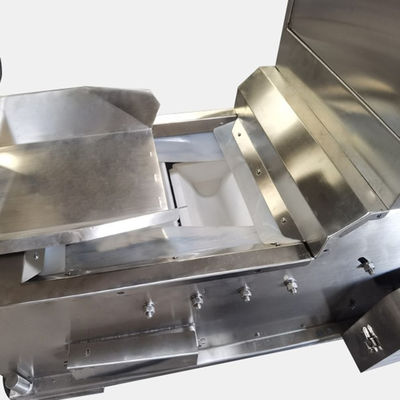

Hopper Options

Available with modified plastic hopper, carbon steel hopper, or stainless steel hopper configurations to meet specific application requirements.

Key Features

Horizontal and vertical combination transmission with horizontal lengths of 1.2-40 meters and vertical heights of 1.5-30 meters (up to 100 meters maximum)
Gentle material handling throughout feeding, conveying, and unloading processes minimizes product damage and reduces scrap rates

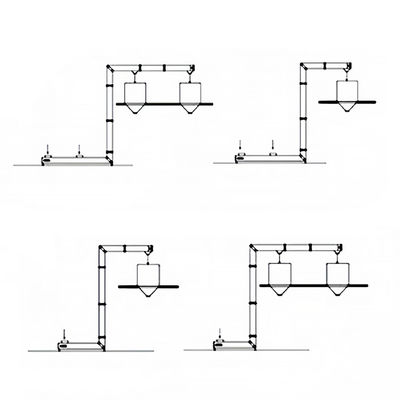

Flexible single-point or multi-point automatic feeding and unloading systems suitable for multiple silo feeding arrangements
High-strength plastic cast mold hoppers with excellent appearance, deformation resistance, high temperature tolerance, and corrosion resistance
High integration design with superior material lifting efficiency, compatible with vibration feeders for complete system linkage and fully enclosed construction for hygiene compliance

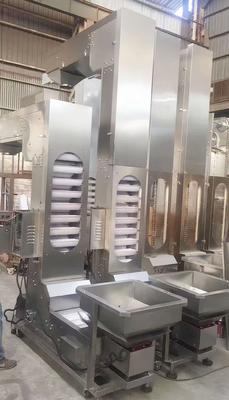

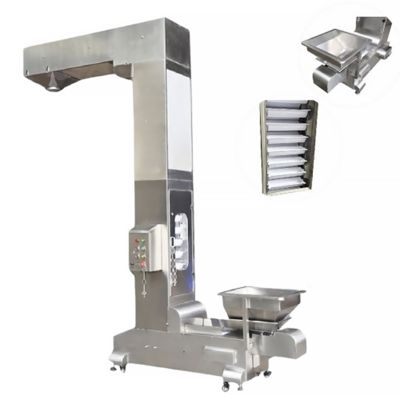

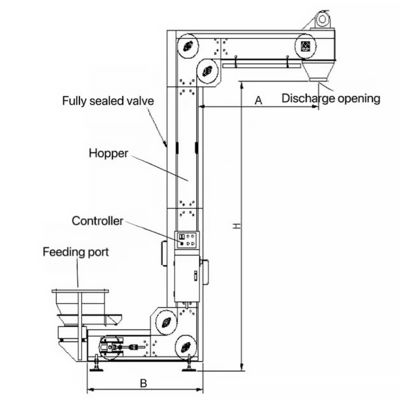

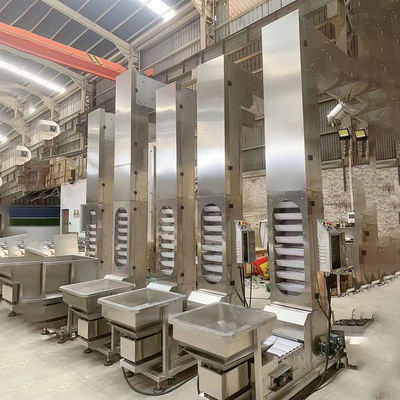

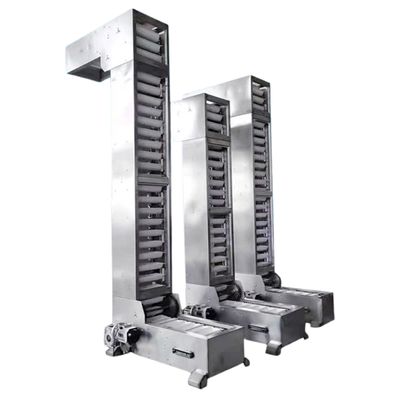

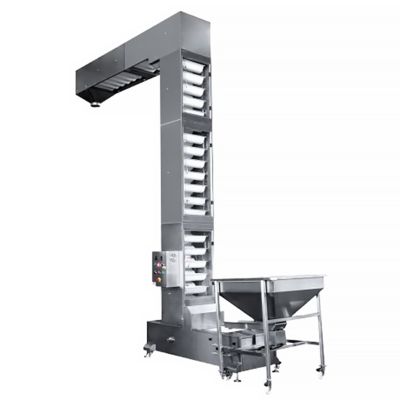

Product Images
