Customized Tube Chain Conveyor Stainless Steel Hose Conveyor Tube Chain Conveyor Tube-Type Disc Conveyor Grain Conveyor Machinery Equipment Manufacturer in China

Customized Tube Chain Conveyor Stainless Steel Hose Conveyor Tube Chain Conveyor Tube-Type Disc Conveyor Grain Conveyor Machinery Equipment Manufacturer in China

Brand Name:	WeSeW
Model Number:	W003
MOQ:	1 pc
Price:	US$75000~US$20,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Energy & Mining

Core Components:

Motor, Engine

Dimension(L*W*H):

Customized

Specification:

Customized

Structure:

Chain Conveyor

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

stainless steel tube chain conveyor

customized grain conveyor machinery

chain scraper conveyor with warranty

Product Description

Custom Tube Chain Conveyor Systems

Our customized stainless steel tube chain conveyor systems provide efficient material handling for grain, fertilizer, and feed transportation in space-constrained industrial applications. These fully enclosed tubular chain conveyors operate with minimal energy consumption while ensuring dust-free operation.

System Overview

Also known as plate chain conveyors, our systems operate within sealed pipes for dust-free material handling. They deliver stable performance and energy efficiency when conveying bulk materials including powders, fine particles, and small lumps. Capable of horizontal, inclined, and vertical transportation, these conveyors serve industries such as chemical processing, agriculture, mining, food production, and construction.

Technical Specifications

Motor Specifications

Parameter	Value
Motor Power	4-80 Kw
Power Voltage	380/220 V

Performance Parameters

Parameter	Value
Chain Wheel Speed	8-20 r/min
Chain Plate Speed	3 m/s
Conveying Quantity	4-80 CBM/h

Steel Wire Rope Conveyor Advantages

Compact structure with universal turning capability
No dead areas in material flow
Multiple discharge points without special airlocks
Adjustable plate spacing for versatile applications
Ideal for small capacity material conveying
More economical than plate chains with lower maintenance costs

Model Specifications

Model	Capacity (m³/h)	Chain Wheel Speed (r/min)	Chain Plate Speed (m/s)	Motor Power (kw)
GL80	4	20	0.29	4
GL100	8	18	0.31	5.5
GL150	16	15	0.31	7.5
GL200	28	12	0.3	11
GL250	48	10	0.3	15
GL300	60	8	0.28	18.5
GL400	80	8	0.28	22

Technology Advantages

Scientific Design: Includes anti-off chain device, chain-broken protection, color disc matching, chain reverse recognition, and emergency outlets for rapid production resumption
Perfect Service: Extensive manufacturing and installation experience with ample spare parts availability
Rich Experience: Proven performance across multiple industries handling diverse materials with capacities up to 300m³/h, vertical conveying up to 40m, and horizontal conveying up to 60m
Powerful Strength: Strong technical foundation with university research partnerships, two research centers, and over 30 engineers in our high-tech enterprise
Advanced Technology: Online status detection system with timely alarms and interlocks to prevent equipment accidents
Excellent Performance: High-temperature resistance up to 250°C (soft disc) and system operation capability at 500°C

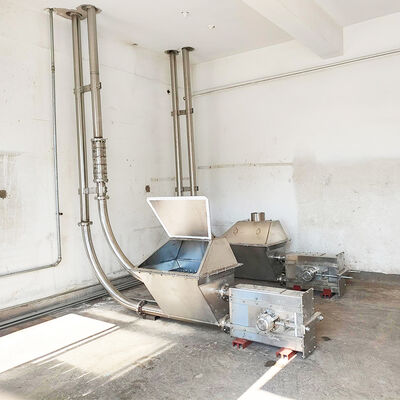

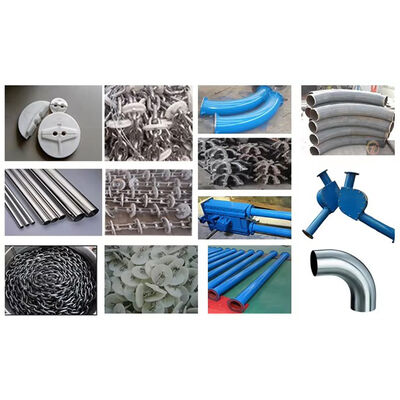

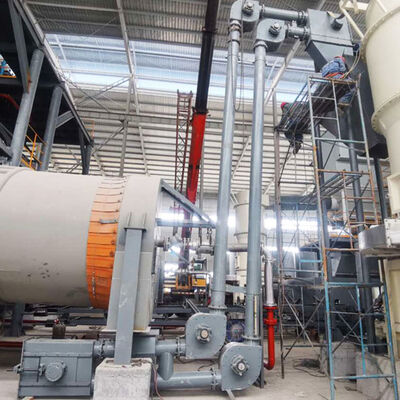

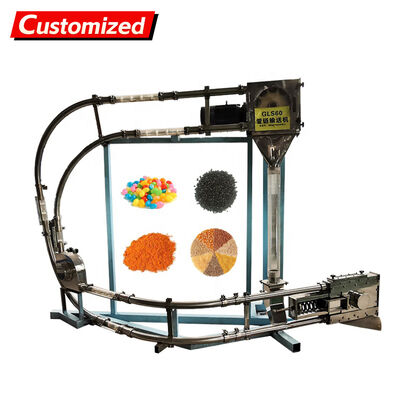

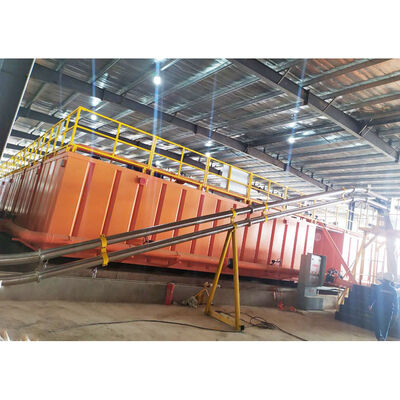

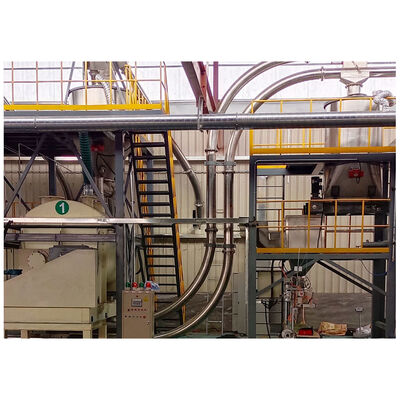

Product Images

Tags:

Customized stainless steel tube chain conveyors are suitable for grain, fertilizer, and feed transportation in space-saving applications.
