OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Spline Shaft Coupling

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Five-Point Design Spline Shaft Coupling

Keyway Tapered Structure Flexible Coupling

2000n-m Rated Torque Rectangular Spline Coupling

Product Description

OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling

High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material	Steel
Standard or Nonstandard	Standard
Structure	Universal
Warranty	1 year
Bore Diameter	100mm
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible
Outer Diameter	145mm
Bore Diameter Range	24mm ~ 65mm
Length Range	163mm - 323mm
Bore Type	Finished Bore
Surface Treatment	Blackening
Minimum Order Quantity	1 Set

Key Features & Benefits

High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

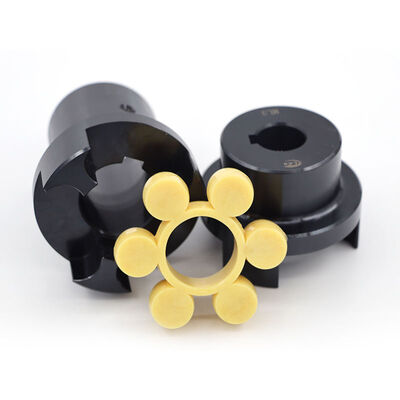

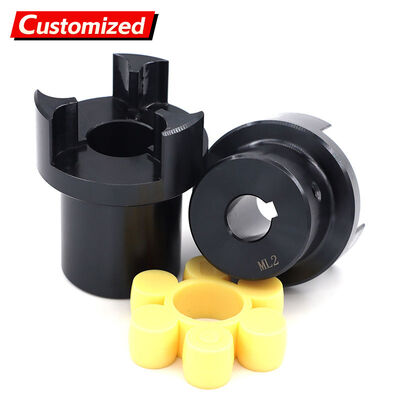

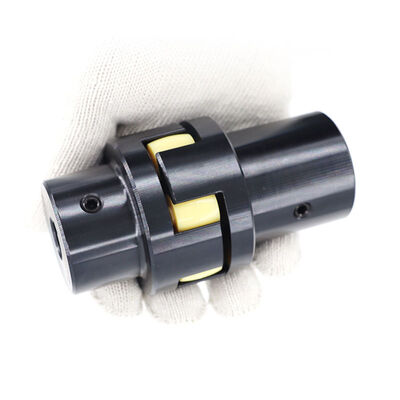

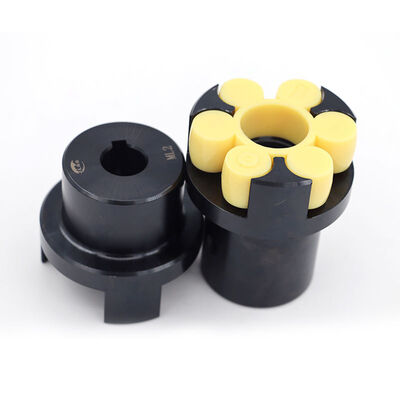

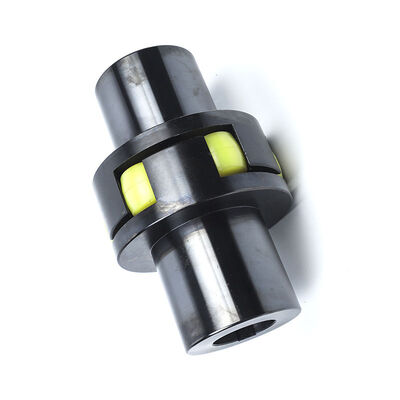

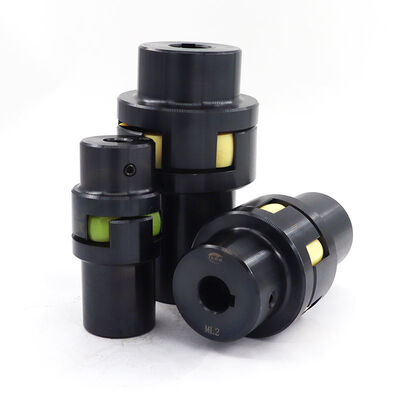

Product Images
