Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications

Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Flexible Star Couplings

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

2000n-m Rated Torque Flexible Coupling

5000 RPM Maximum Speed Diaphragm Coupling

Torsionally Rigid Shaft Coupling

Product Description

Custom Flexible Single-Diaphragm Coupling

High-performance flexible shaft coupling featuring torsional rigidity with double-disc assembly and spacers. Transmits torque through elastic deformation of metal diaphragms for precision applications.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining
Material	Steel
Standard or Nonstandard	Standard
Structure	Disc
Warranty	1 year
Bore Diameter	100mm
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Diaphragm
Customized Support	OEM, ODM
Flexible or Rigid	Flexible
Outer Diameter	168mm
Bore Diameter (d1~d2)	≤75mm
Length	133mm
Bore Type	Finished Bore

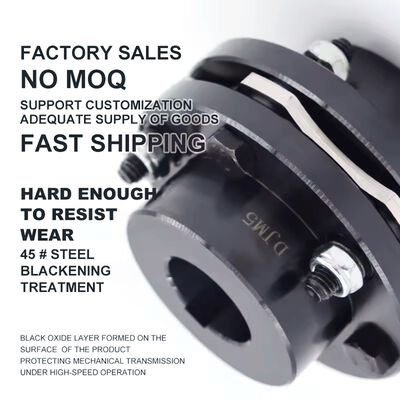

Surface Treatment	Blackening
Minimum Order Quantity	1 Set

Key Features & Benefits

Structure and Compensation Characteristics

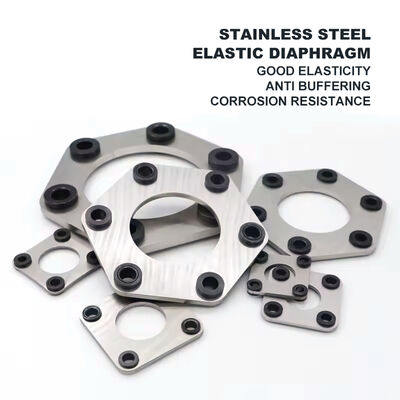

Compact and lightweight design with short overall length. Comprises a set of diaphragms and two coupling halves. The diaphragms' elastic deformation compensates for small axial, radial, and angular misalignments, making it ideal for installations with limited space.

Performance Advantages

All-metal construction - maintenance-free and resistant to oil and corrosion
Operates reliably in extreme temperatures from -200°C to +300°C
Service life exceeding 10 years
Zero-backlash design ensures transmission accuracy
Torque transfer efficiency above 99.8%
Reduces bearing load for improved system longevity

Applications

Ideal for precision applications including servo motor-ball screw connections, battery assembly line indexing mechanisms, and tire tightening machines. Delivers high-precision torque transmission and positioning. Select models meet FDA certification requirements for food-grade cleanliness standards.
