Precision CNC Machined Splined Shaft with High Transmission Efficiency for Multi-Axis Linkage Transmission Systems

Precision CNC Machined Splined Shaft with High Transmission Efficiency for Multi-Axis Linkage Transmission Systems

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Precision Splined Gear Shaft

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Precision CNC Machined Splined Shaft

High Transmission Efficiency Gear Shaft

Multi-Axis Linkage Transmission Shaft

Product Description

Custom CNC Machined Splined Shafts for Transmission Systems

Precision CNC-machined splined shafts with multi-axis linkage transmission for demanding industrial applications including automotive transmissions, aerospace systems, and CNC machine tool spindles.

Core Component Specifications

Component	Gear
Material	Steel
Weight	4.44 kg

Structure and Function

Precision splined shafts combine transmission and connection functions with precisely machined splines that ensure high-precision torque transmission and maintain coaxiality between shaft and mating components. Some designs integrate gear structures for rotational speed and torque conversion, enabling multi-axis synchronized transmission.

Manufacturing and Characteristics

Produced using high-precision CNC machining equipment with spline tooth form and directional errors controlled at micrometer levels. Gear tooth surfaces undergo finishing processes like grinding for low transmission noise and high efficiency. Components are crafted from premium alloy steels (40Cr, 20CrMnTi) with heat treatment processes including quenching, tempering, carburizing, and quenching to ensure high strength, exceptional wear resistance, and fatigue endurance.

Key Advantages

High transmission precision and load-bearing capacity for heavy loads and high rotational speeds
Compact design saves internal equipment space
Enhanced overall layout efficiency
Exceptional transmission accuracy and stability
Adaptable to demanding operating conditions

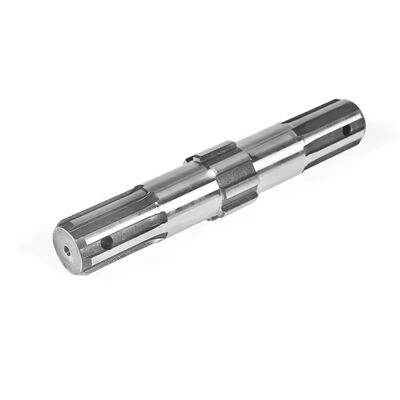

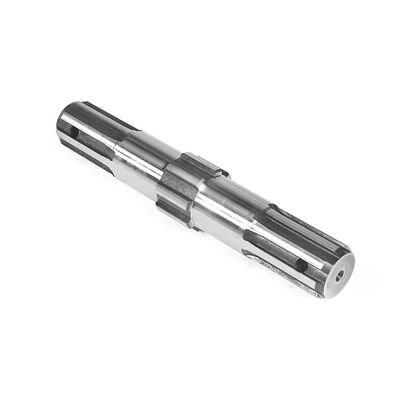

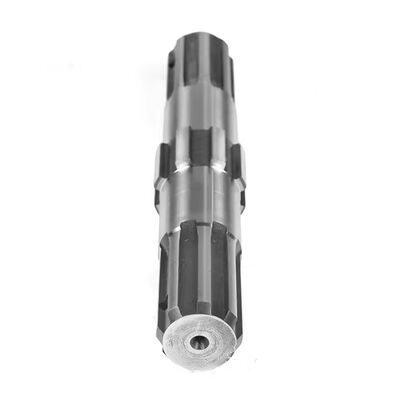

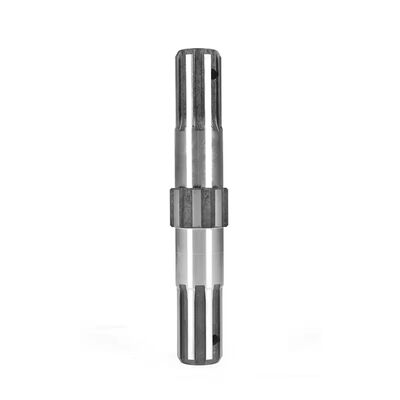

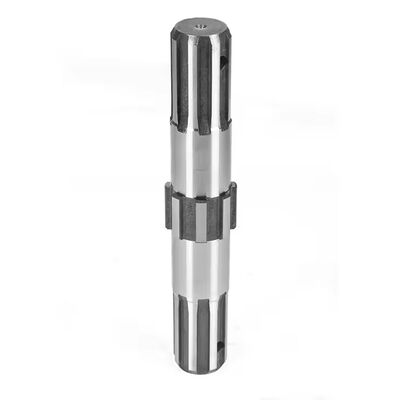

Product Gallery
