Custom High Transmission Efficiency Ball Spline with High Positioning Accuracy and Strong Load-Bearing Capacity

Custom High Transmission Efficiency Ball Spline with High Positioning Accuracy and Strong Load-Bearing Capacity

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Precision Splined Gear Shaft

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

High Transmission Efficiency Ball Spline

High Positioning Accuracy Splined Shaft

Strong Load-Bearing Capacity Gear Shaft

Product Description

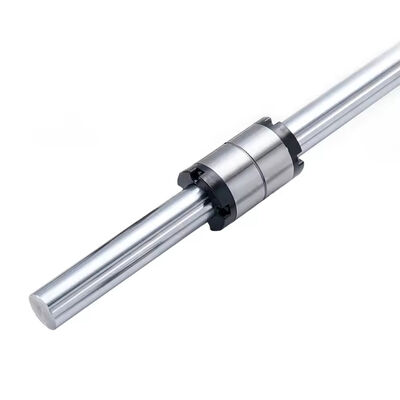

Custom High-Speed Spline Shaft Ball Spline

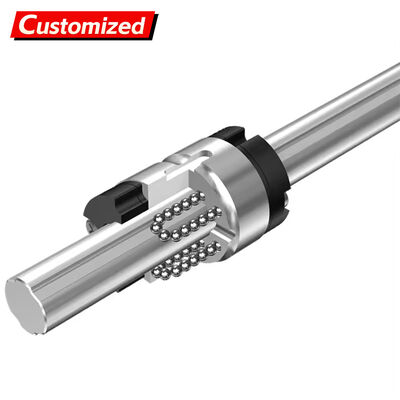

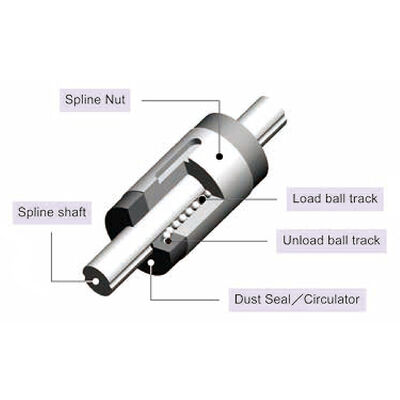

Ball splines are precision transmission components that integrate rotational and linear motion functions, primarily consisting of a splined shaft, splined sleeve, and circulating balls. They achieve efficient power transmission through the rolling motion of balls between the splined shaft and sleeve.

Product Specifications

Product Name: Ball Spline

Model: 25

Material: Bearing Steel

Manufacturing Process: Rolled Thread

Core Components: Bearing

Length: Customized

Weight: 1 kg

Condition: New

Warranty: 1 Year

Key Advantages

High Transmission Efficiency: Point contact between balls and raceways minimizes friction coefficients, reducing energy loss while delivering responsive operation and superior dynamic performance
High Positioning Accuracy: Preload adjustment eliminates rotational backlash, enabling zero-backlash transmission with micrometer-level repeatability precision
Strong Load-Bearing Capacity: Gothic 40° angular contact structure increases contact area, handling radial, axial, and overturning torque loads simultaneously
Compact & Durable Design: Single shaft enables dual-degree-of-freedom motion, reducing installation space with excellent lubrication and extended service life

Industry Applications

Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining, Advertising Companies, and various other industrial sectors. Specifically used in CNC machine tools, industrial robots, medical equipment, aerospace, automotive manufacturing, and precision printing machinery.

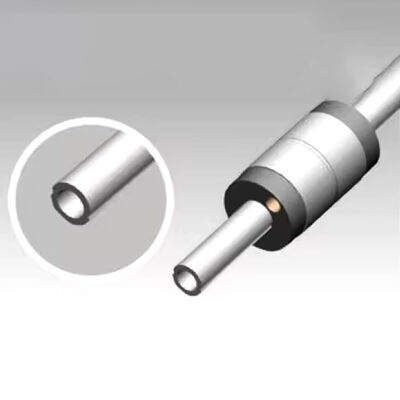

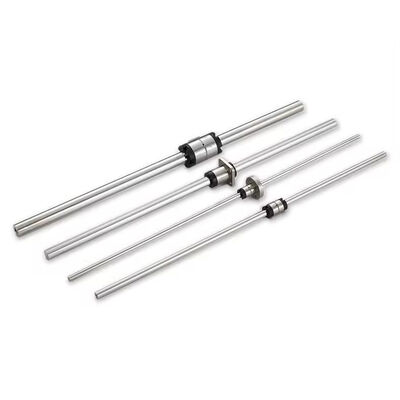

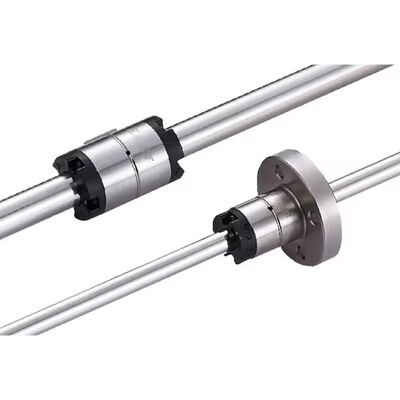

Product Gallery

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

l*o

Germany Mar 1.2026

trustpilot.com

Helpful (5)

High-quality delivery—highly recommended.

Australia Feb 1.2026

Helpful (2)

Excellent. Thank you—it was a pleasure working with you.

D*d

Greece Nov 10.2025

Helpful (1)

Sealed design prevents dust ingress. 304 stainless steel ensures durability and corrosion resistance. Customizable for seamless production line integration. Rapid after-sales response. Long-term reliability with cost savings. An excellent value choice.
