Custom High-Precision Spline Shafts with Zero Axial Play and Custom Length for Robotics

Custom High-Precision Spline Shafts with Zero Axial Play and Custom Length for Robotics

Brand Name:	WeSeW
Model Number:	CNC0184
MOQ:	1pcs
Price:	US$5~US$50 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001/UL

Name:

Precision Splined Gear Shaft

OEM/ODM:

OEM ODM CNC Milling Turning Machining Service

Material Capabilities:

Aluminum, Brass, Bronze, Copper, Hardened Metals

Application:

Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal Forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Standard:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC Machining Or Not:

CNC Machining

Micro Machining Or Not:

Micro Machining

Processing Method:

Customer′s Engineering Drawing

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

High Precision Spline Shaft

Custom Length Ball Spline

Zero Axial Play Precision Splined Gear Shaft

Product Description

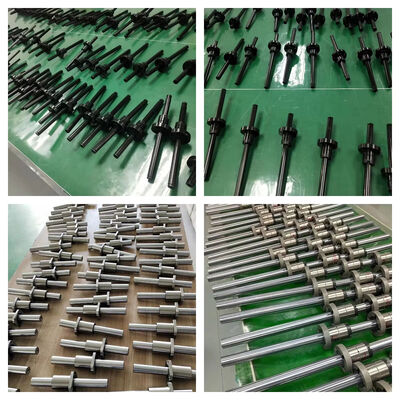

Custom High-Precision Spline Shafts for Robotics

SLF016, SLF020, SLF025, SLF030, SLT016, SLT020, SLT025, SLT030 — Ball splines specifically engineered for robotic applications with exceptional precision and reliability.

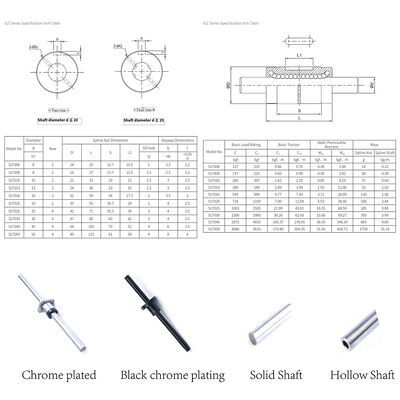

Product Specifications

Core Components	Motor
Weight	0.8 kg
Material	Bearing steel / Stainless steel
Length	Customized to customer requirements
Preload	P0, P1, P2
Axial Play	0~0.005mm (Can be zero)
Accuracy Grade	N, H, P
Lead Time	10~30 days
Spline Shaft Type	Solid / Hollow
Surface Treatment	Available
Industry Experience	16 years
Customized Service	Available

Technical Features

ALM ball splines utilize friction through steel ball contact within the spline nut and grooves on the spline shaft. Our unique 40° angular contact design enables high sensitivity and exceptional load carrying capacity, making these splines ideal for demanding robotic applications.
