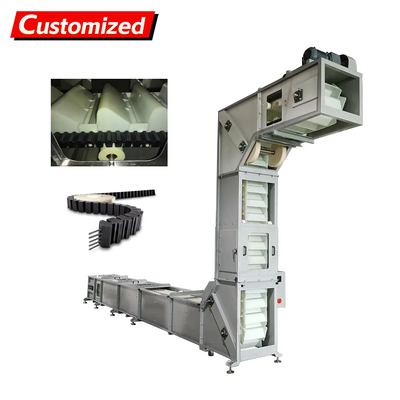

Customized Stainless Steel Heat Resistant Z Bucket Elevator for Granules and Bulk Materials

Brand Name:	WeSeW
Model Number:	W003
MOQ:	1 pc
Price:	US$2000~US$50,000/set
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Name:

Z Bucket Elevator Conveyor

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Core Components:

Motor

Dimension(L*W*H):

Customized

Specification:

Customized

Structure:

Conveyor System

Material:

Stainless Steel

Customization:

Available Customized Request

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Customized Z Bucket Elevator

Stainless Steel Z Bucket Conveyor

Heat Resistant Z-Type Bucket Elevator

Product Description

Custom Z-Shape Bucket Conveyor, Continuous Rubber Chain Z Bucket Elevator for Granules

Speed	Adjustable
Special Feature	Quick Dry, easy cleanliness, Breathable
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining, Other
Name	Z Bucket elevator conveyor
Elevating capacity	0-60m³/h
The lifting height	Up to 50 m
Bucket Material	ABS, Carbon Steel, Stainless Steel
Application	Steel Sand, Plastic Granule, Wood Pellet, Food...
Speed	10-12m/min
Power	0.75-22KW
Voltage	220V/380V/50HZ/60HZ
Unloading Method	Electromagnetic feeder
Drive Form	Motor

Z type bucket elevator is a heavy-duty machine, capable to process huge amounts of material. Bucket Conveyor is suitable for elevating the materials from a lower level to a higher level, the materials are conveyed upward in an automatic and continuous manner through the vibrating station.

Conveying height of 2~50m
Inlet & Outlets Qty. of 1~40 pcs
Handling capacity of 1~50m³/h
No damaged granular material

Key Features

Gentle Handling

Designed for gentle handling. The buckets are overlapping at the inlets to prevent spillage.

Vertical & Horizontal Conveying

Solution for horizontal and vertical conveying in one product, able to replace the combination of belt conveyor and normal bucket elevator.

Multiple Inlets and Outlets

Can be customized to suit application requirements. The bucket elevators can be equipped with a number of several inlets and outlets.

Rugged Construction

Each section of the machine frame is connected with a strong flange, designed for long life.

Low Maintenance

Bearings are mounted outside for easy access. Equipped with automatic chain tensioning device and built-in overload protection.

Operation Overview

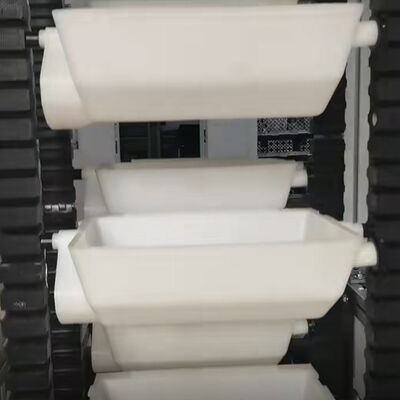

Bucket elevators are designed to gently handle bulk solid materials without breakage or spillage. The elevator has buckets that are side mounted between two drive chains, allowing the buckets to remain in their horizontal position while conveying material vertically, horizontally or at any angle. Finally, the buckets tip to empty the material at the elevator's outlets.

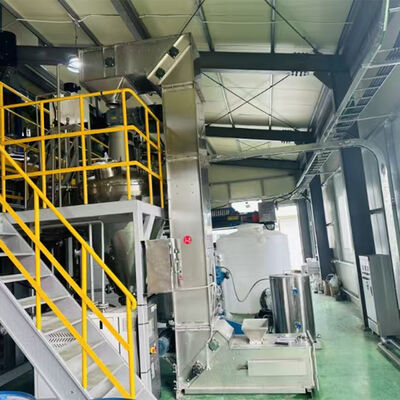

Product Images
