Customized High Temperature Stainless Steel Thermal Screw Conveyor for Powder and Granular Material Cooling

Customized High Temperature Stainless Steel Thermal Screw Conveyor for Powder and Granular Material Cooling

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Highlight:

Customized Thermal Screw Conveyor

High Temperature Cooling Screw Conveyor

Stainless Steel Jacket Screw Conveyor

Product Description

Custom High-Temperature Material Cooling Feeder with Jacket Screw Conveyor

Custom-designed cooling feeder with jacket screw conveyor equipment for efficient transportation of powdered and granular materials.

Product Specifications

General Specifications

Applicable Industries: Building Material Shops, Construction, Energy & Mining, Farms, Food & Beverage, Logistics, Machinery Repair, Manufacturing
Dimensions: Customized (L*W*H)
Voltage: 110V, 220V, 380V Electrical Equipment
Warranty: 1 Year
Structure: Customized
Frame Material: Carbon Steel, Stainless Steel 304/316
Color: Customized

Technical Specifications

Model	LS114	LS133	LS159	LS219	LS245	LS273	LS315	LS400	LS500
Diameter (mm)	114	133	159	219	245	273	315	400	500
Rated Speed (r/min)	84-130	84-130	84-130	84-130	84-130	84-130	84-130	62-100	62-100
Reference Capacity (m³/h)	1	1.3	5	15	20	30	40	45	70

Motor Power: 2.2-18.5 kW

Maximum Gradient: <60°

Product Features

Screw Conveyor System

Also known as water-cooled jacketed auger conveyor, this equipment cools conveyed materials through cooling water in the jacket while using spiral blades to push materials forward. Ideal for industrial applications requiring temperature control of materials such as carbon black and graphite anode materials.

Model Variations

LS250 Screw Conveyor: Forced feeding design for pushing powdery and granular materials including plastic particles, feed, and chemical raw materials
LS550 Screw Conveyor: Pipe screw conveyor for common conveying of powdery and granular materials
LS160 Screw Conveyor: U-type design for horizontal or small inclination angle conveying of powdery, granular, and small block materials

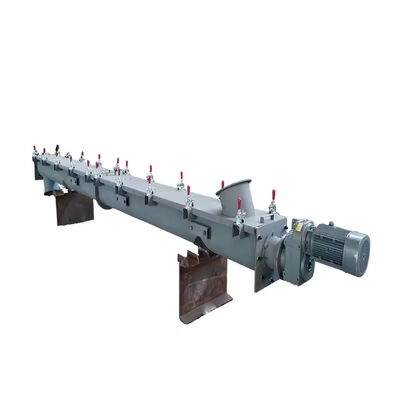

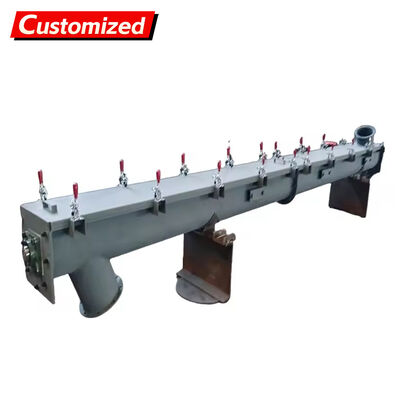

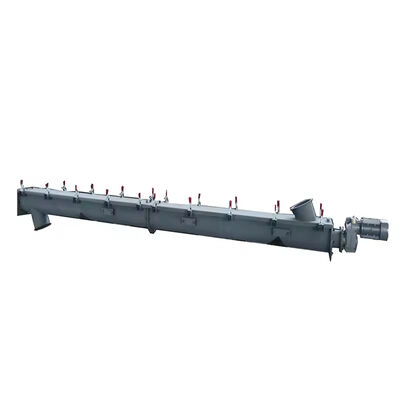

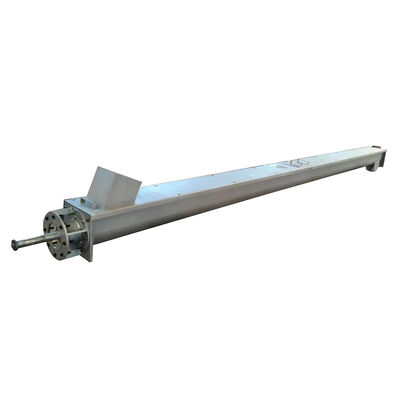

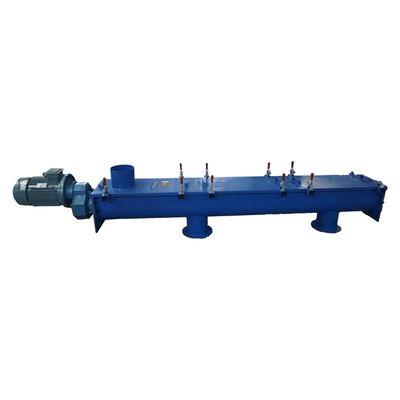

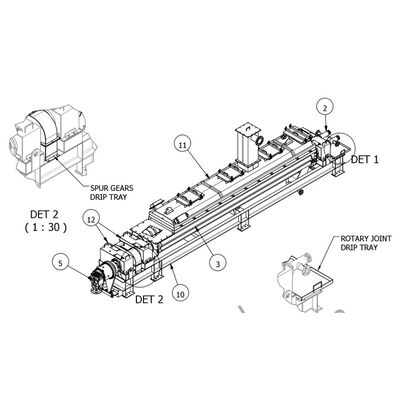

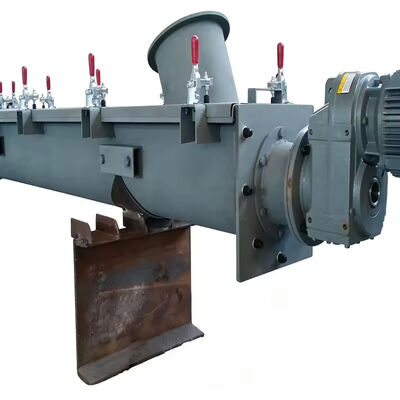

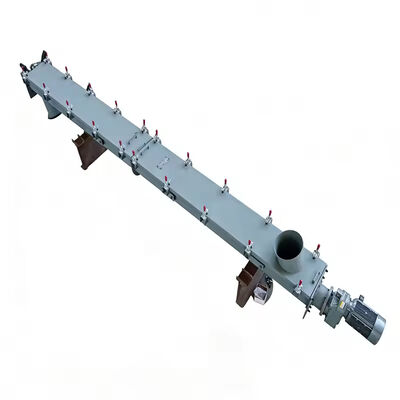

Product Gallery
