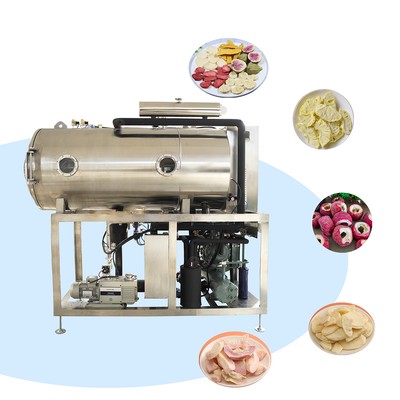

Custom Stainless Steel 2-Square-Meter High Efficiency Vacuum Freeze Dryer for Fruits and Flower Petals

Brand Name:	WeSeW
MOQ:	1 pc
Price:	US$10,000~US$50,000 per pc
Payment Terms:	T/T,Western Union
Supply Ability:	10,000 pieces per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

china

Certification:

CE/UL

Material:

Stainless Steel

Material Feature:

Heat Resistant, Fire Resistant

Application:

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Applicable Industries:

Manufacturing Plant, Food & Beverage Factory...

Machinery Test Report:

Provided

Usage:

Conveyor

Width Or Diameter:

Customized

Dimension(L*W*H):

Customized

Function:

Transmission System

Feature:

High Efficiency

Speed:

High Speed

Transport Package:

Wooden Box

Specification:

Customized

Packaging Details:

Wooden Case

Supply Ability:

10,000 pieces per month

Product Description

Custom Stainless Steel Dryer: 2-Square-Meter Small Vacuum Freeze Dryer for Fruits and Flower Petals

Technical Specifications

Parameter	Specification
Whole volume (LWH)	2500×1000×2150mm
Total weight	2000KG
Power	380V, 50Hz, 3 Phase, 5 Wire
Cooling water quantity	≥5m³/h (T≤30℃, P=0.2-0.3Mpa)
Chamber material	SUS304
Total usable area of shelves	2㎡
Lowest temperature of shelf	≤-50℃
Highest temperature of shelf	+80℃
Chamber design pressure	-0.1Mpa
Compressor power	7.4HP
Ultimate vacuum	≤2.6Pa
Heating mode	Electrical heating

Key Features & Structure

With a freeze-drying area of 2 m², this model is a small-scale production-grade unit equipped with independent refrigeration, vacuum, heating, and intelligent control systems. The cold trap temperature can reach -50°C, with a maximum vacuum of ≤2.6 Pa. It can reliably process dozens of kilograms of material per batch, balancing production capacity with flexibility.

Technical Advantages

Based on the principle of low-temperature sublimation, the material remains in a low-temperature vacuum environment below the eutectic point throughout the entire process, preserving more than 95% of its original activity, nutritional content, and physical form. The moisture content of the final product can be controlled between 1% and 5%, allowing for long-term storage without the need for preservatives.

Applications

Suitable for small- to medium-scale production and pilot-scale R&D, it is widely used for freeze-drying high-end snack foods, premium Chinese herbal slices, biological reagents, and functional cosmetic ingredients. It offers a cost-effective solution for drying small batches of high-value-added materials.
